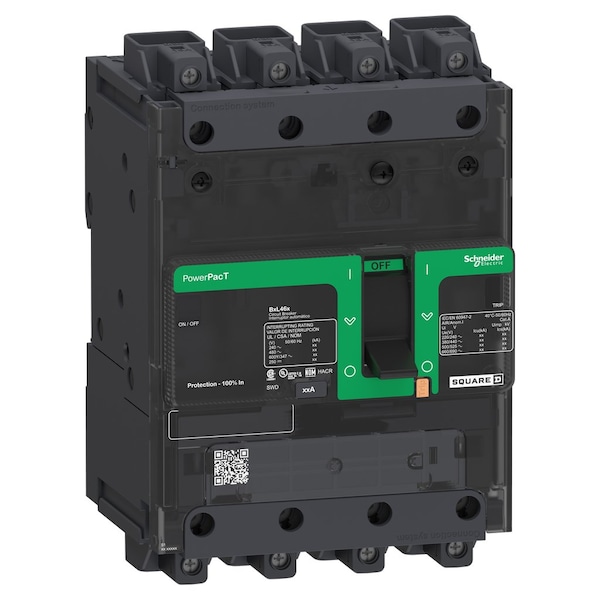

Molded Case Circuit Breaker, BDA Series, 100A, 4 Pole, 347/600V AC, 25kA at 240V AC, B Curve
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | BDA |
| Amps | 100A |
| Number of Poles | 4 |
| AC Voltage Rating | 347/600V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 25kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Lug, I-Line |
| Frame Size | 125A/B |
| Width | 4-1/4 in |
| Depth | 3-1/2 in |
| Height | 5.39 in |
| DC Voltage Rating | 250V DC |
| Curve Type | B |
| Max. Wire Size | 2/0 AWG (Cu/Al) Fine, 3/0 AWG (Cu/Al) Rigid |
| Standards | UL, IEC, CCC, EAC, CSA, NOM, CE, NEMA |
| Features | Mercury Free; PVC Free |
| Interrupt Rating | 25 kA at 208Y/120/220/240V AC, 14 kA at 500/525V AC, 18 kA at 380/415/440/480/277/600Y/347V AC, 10 kA at 250V DC |
| Color | Gray |
| Min. Wire Size | 6 AWG (Cu/Al) Fine, 14 AWG (Cu/Al) Rigid |
| Application | HACR rated Applications; Distribution |
| Package Quantity | 1 |
