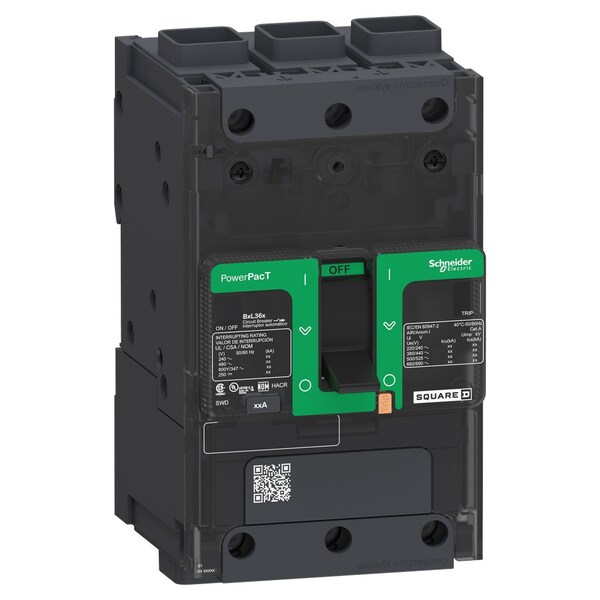

Molded Case Circuit Breaker, BDF Series, 30A, 3 Pole, 347/600V AC, 25kA at 240V AC, B Curve
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | BDF |
| Amps | 30A |
| Number of Poles | 3 |
| AC Voltage Rating | 347/600V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 25kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Nut |
| Phase Connection | ABC |
| Frame Size | 125A/B |
| Width | 3.19 in |
| Depth | 3-1/2 in |
| Height | 5.39 in |
| DC Voltage Rating | 250V DC |
| Curve Type | B |
| Min. Wire Size | 14 AWG (Cu/Al), 6 AWG (Cu/Al) |
| Max. Wire Size | 8 AWG (Cu/Al), 3/0 AWG (Cu/Al) |
| Application | HACR rated Applications; Distribution |
| Interrupt Rating | 25 kA at 208Y/120/220/240/480/277V AC, 14 kA at 480/500/525V AC/250V DC, 18 kA at 240/380/415/440/600Y/347V AC |
| Standards | UL 489, CSA C22.2 No 5, IEC, CCC, EAC, NOM, CE, NEMA AB1, NMX J-266 |
| Color | Gray |
| Features | Mercury Free; PVC Free |
| Package Quantity | 1 |
