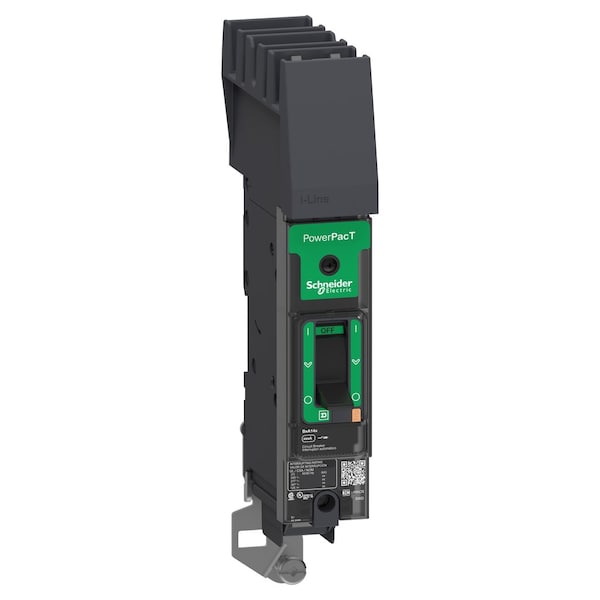

Molded Case Circuit Breaker, BJA Series, 20A, 1 Pole, 347/600V AC, 100kA at 240V AC, B Curve
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | BJA |
| Amps | 20A |
| Number of Poles | 1 |
| AC Voltage Rating | 347/600V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | I-Line |
| Max. AIR Rating | 100kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Lug, I-Line |
| Phase Connection | C |
| Frame Size | 125A/B |
| Width | 1.06 in |
| Depth | 3-1/2 in |
| Height | 5.39 in |
| DC Voltage Rating | 125V DC |
| Curve Type | B |
| Features | Mercury Free; PVC Free |
| Max. Wire Size | 2/0 AWG (Cu/Al) |
| Interrupt Rating | 65 kA at 220/240/480Y/277V AC, 100 kA at 208Y/120/240V AC, 25 kA at 600Y/347V AC, 50 kA at 125V DC |
| Standards | UL 489, CSA C22.2 No 5, IEC, CCC, EAC, NOM, CE, NEMA AB1, NMX J-266 |
| Application | HACR rated Applications; Distribution |
| Color | Gray |
| Min. Wire Size | 14 AWG (Cu/Al) |
| Package Quantity | 1 |
