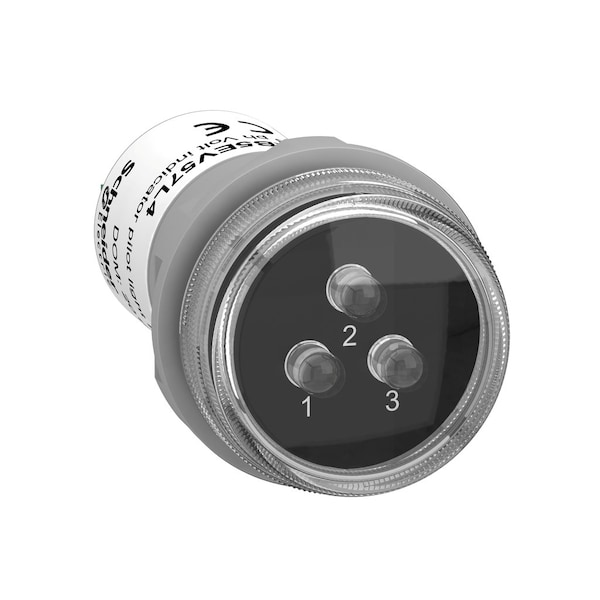

Luz piloto monolítica, Harmony XB5, voltaje de 3 fases, indicador con 3 LED, color blanco, 400V AC.
| Item | PHASES 3 VOLTAGE INDICATOR PILOT LIGHT W |
|---|---|
| Height | 65.5 mm |
| Depth | 77 mm |
| Standards | IEC 60947-5-1, IEC 60947-5-4, IEC 60947-1 |
| Phase | 3 phase |
| Width | 36 mm |
| Compatibility Code | XB5 |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Service Life | 100000 h at rated voltage and 25°C |
| Ip Degree of Protection | IP67 front face), IP20 back face) |
| Ambient Air Temperature For Storage | -40-70°C |
| Light Source | LED |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Ambient Air Temperature For Operation | -30-70°C |
| Mounting Diameter | 30 mm |
| Product or Component Type | monolithic pilot light |
| [Uimp] Rated Impulse Withstand Voltage | 1 kV IEC 61000-4-5 |
| Bulb Base | Integral LED |
| Range of Product | Harmony XB5 |
| Device Presentation | monolithic product |
| Supply Voltage Limits | 450 to 450 V AC |
| Cap/Operator or Lens Colour | clear |
| Connections - Terminals | Faston terminals 6.3 mm IEC 60947-1 |
| Shape of Signaling Unit Head | round |
| Device Short Name | XB5 |
| Current Consumption | 2.6 mA |
| Electromagnetic Compatibility | electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, electrostatic discharge - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 |
| Ik Degree of Protection | IK10 conforming to IEC 50102 |
| Light Source Colour | white |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Fixing Collar Material | Plastic |
| Bezel Material | plastic |
| Package Quantity | 1 |
