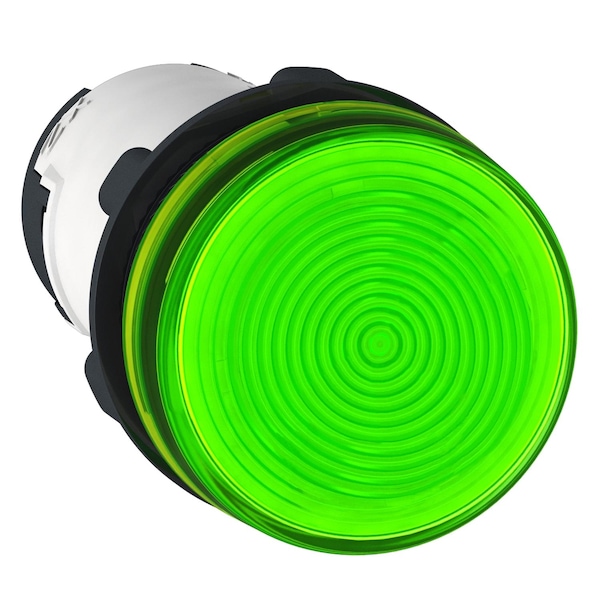

Piloto monolítico, Harmony XB7, plástico, verde, 22mm, lente simple para foco BA9s, tipo LT 250V.
| Item | Round pilot light 0 22 - green - BA 9s b |
|---|---|
| Width | 29 mm |
| Standards | EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-1 |
| Height | 29 mm |
| Depth | 54 mm |
| Device Mounting | fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-5-1 |
| Signalling Type | steady |
| Ambient Air Temperature For Operation | -25-55°C |
| Fixing Mode | fixing nut beneath head 2-2.4 N.m |
| Connections - Terminals | Faston connectors 6.35 x 0.8 mm EN/IEC 60947-1 || forked type tag connectors 6.5 mm EN/IEC 60947-1 || screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1 |
| Cap/Operator Or Lens Colour | green |
| Fixing Center | >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm |
| Protective Treatment | TH |
| Shape Of Signaling Unit Head | round |
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Mounting Diameter | 22 mm |
| Device Presentation | product |
| Bulb Base | BA 9s |
| Shape Of Screw Head | cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Terminals Description Iso N°1 | PL |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| Ambient Air Temperature For Storage | -40-70°C |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Nema Degree Of Protection | NEMA 12 |
| Electromagnetic Compatibility | disturbing field emissionclass B EN 55011 |
| Compatibility Code | XB7 |
| Shock Resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Product Or Component Type | Pilot light |
| Device Short Name | XB7 |
| Overvoltage Category | class II IEC 60536 |
| Ip Degree Of Protection | IP20 IEC 60529 rear face) || IP54 IEC 60529 front face) |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Light Source | incandescent |
| [Us] Rated Supply Voltage | <= 250 V |
| Operator Additional Information | with plain lens |
| Light Block Supply | direct |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Rated Supply Voltage | Less than or Equal to 250 V |
| Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Range of Product | Harmony XB7 |
| Package Quantity | 1 |
