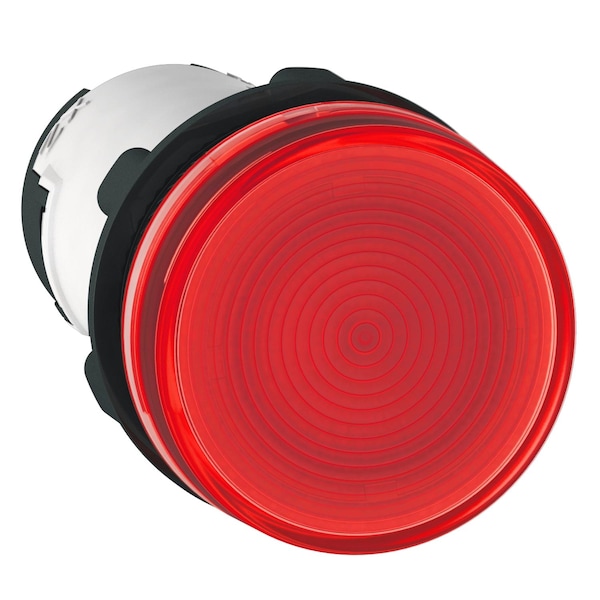

Piloto monolítico, Harmony XB7, plástico, rojo, 22mm, lente lisa para bombilla BA9s, hasta 250V.
| Item | Direct Supply Red Pilot Light |
|---|---|
| Voltage | 250V |
| Color | Red |
| Lamp Type | Incandescent |
| Shape | Round |
| Terminal Connection | Faston Connectors; Forked type tag connectors; Screw Clamp terminals |
| Contact Form | (X1-X2)PL |
| Standards | UL 508; JIS C8201-5-1; CSA C22.2 No 14; EN/IEC 60947-5-1; EN/IEC 60947-1; JIS C8201-1 |
| Height | 29 mm |
| Length | 54 mm |
| Width | 29 mm |
| NEMA Rating | 12 |
| IP Rating | IP20, IP54 |
| Type | Steady Signal |
| Device Short Name | XB7 |
| Fixing Center | >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Overvoltage Category | class II IEC 60536 |
| Light Block Supply | direct |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| [Us] Rated Supply Voltage | <= 250 V |
| Compatibility Code | XB7 |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Ambient Air Temperature For Operation | -25-55°C |
| Connections - Terminals | Faston connectors 6.35 x 0.8 mm IEC 60947-1, forked type tag connectors 6.5 mm IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Light Source | Incandescent |
| Protective Treatment | TH |
| Shape of Screw Head | cross JIS No 1, cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| Electromagnetic Compatibility | disturbing field emission class B conforming to IEC 55011 |
| Device Presentation | monolithic product |
| Mounting Diameter | 22 mm |
| Signalling Type | Steady |
| Operator Additional Information | with plain lens |
| Nema Degree of Protection | NEMA 12 |
| Device Mounting | fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-5-1 |
| Fixing Mode | fixing nut beneath head 2-2.4 N.m |
| Bulb Base | BA 9s |
| Product or Component Type | pilot light |
| Range of Product | Harmony XB7 |
| Ambient Air Temperature For Storage | -40-70°C |
| Shock Resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Ip Degree of Protection | IP20 IEC 60529 rear face), IP54 IEC 60529 front face) |
| Package Quantity | 1 |
