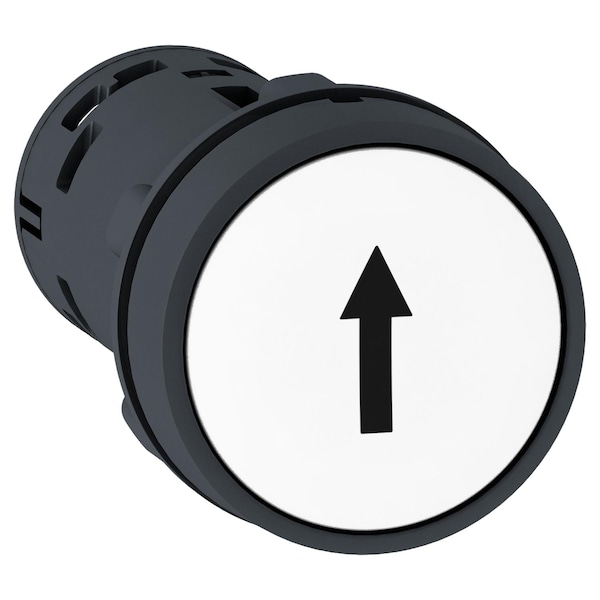

Botón pulsador monolítico, Harmony XB7, plástico, blanco, 22mm, retorno por resorte, marcado con FLECHA HACIA ARRIBA, 1NC.
| Item | Monolithic push button,plastic,white, |
|---|---|
| Standards | JIS C8201-5-1 || EN/IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-1 |
| Device Mounting | fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1 |
| Cad Overall Width | 29 mm |
| Terminals Description Iso N°1 | NO |
| Electrical Reliability | Λ <= 10exp(-6) 17 V, 5 mA EN/IEC 60947-5-4 |
| Protective Treatment | TH |
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Ip Degree Of Protection | IP20 IEC 60529 rear face) || IP65 IEC 60529 front face) |
| Operator Profile | white flush, up arrow black) |
| Shape Of Signaling Unit Head | round |
| Ambient Air Temperature For Storage | -40-70°C |
| Fixing Center | >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Type Of Operator | spring return |
| Positive Opening | with |
| Product Or Component Type | push-button |
| Cad Overall Depth | 51.5 mm |
| Contact Operation | slow-break |
| Mechanical Durability | 1,000,000 cycle |
| Ambient Air Temperature For Operation | -25-70°C |
| Mounting Diameter | 22 mm |
| Electrical Durability | 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C |
| Product Certifications | CCC || GOST |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Contacts Type And Composition | 1 NO |
| Shape Of Screw Head | cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mm² without cable end EN/IEC 60947-1 |
| Overvoltage Category | class II IEC 61140 |
| Shock Resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
| Short-Circuit Protection | 4 A cartridge fuse gG EN/IEC 60947-5-1 |
| Nema Degree Of Protection | NEMA 12 UL 50 E || NEMA 3 UL 50 E |
| [Ie] Rated Operational Current | 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 |
| Device Presentation | product |
| Fixing Mode | fixing nut beneath head 2-2.4 N.m |
| Cad Overall Height | 29 mm |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 |
| Device Short Name | XB7 |
| Range of Product | Harmony XB7 |
| Package Quantity | 1 |
