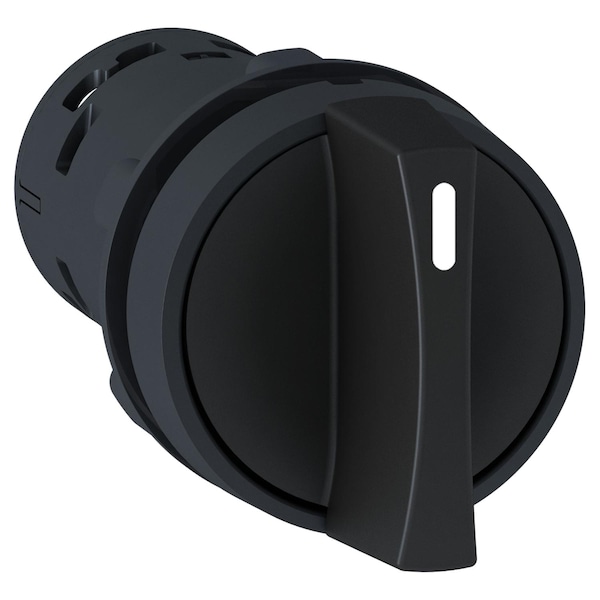

Interruptor selector monocasco, Harmony XB7, plástico, negro, 22mm, mantener en posición, 2 posiciones, mantener en posición, 1NA+1NC.
| Item | Selector 2Pos 1No + 1Nc |
|---|---|
| Standards | JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1 |
| Fixing Center | >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 |
| Electrical Shock Protection Class | class II IEC 61140 |
| [Ie] Rated Operational Current | 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 |
| Shape Of Screw Head | cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Cad Overall Depth | 68.5 mm |
| Contact Operation | slow-break |
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Operator Position Information | 2 positions 90° |
| Mechanical Durability | 300,000 cycle |
| Shock Resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
| Nema Degree Of Protection | NEMA 12 UL 50 E || NEMA 3 UL 50 E |
| Fixing Mode | fixing nut 2-2.4 N.m |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70°C |
| Mounting Diameter | 22 mm |
| Cad Overall Height | 29 mm |
| Ip Degree Of Protection | IP20 IEC 60529 rear face) || IP65 IEC 60529 front face) |
| Device Mounting | fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1 |
| Operator Profile | black standard handle |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mm² without cable end EN/IEC 60947-1 |
| Ambient Air Temperature For Operation | -25-70°C |
| Protective Treatment | TH |
| Electrical Durability | 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C |
| Positive Opening | IEC, with EN 60947-5-1 appendix K |
| Contacts Type And Composition | 1 NO + 1 NC |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Device Short Name | XB7 |
| Cad Overall Width | 29 mm |
| Terminals Description Iso N°1 | NO || NC |
| Shape Of Signaling Unit Head | round |
| Type Of Operator | stay put |
| Short-Circuit Protection | 4 A cartridge fuse gG EN/IEC 60947-5-1 |
| Product Or Component Type | switch |
| Electrical Reliability | λ < 10exp(-6) 17 V 5 mA IEC 60947-5-4 |
| Range of Product | Harmony XB7 |
| Package Quantity | 10 |
