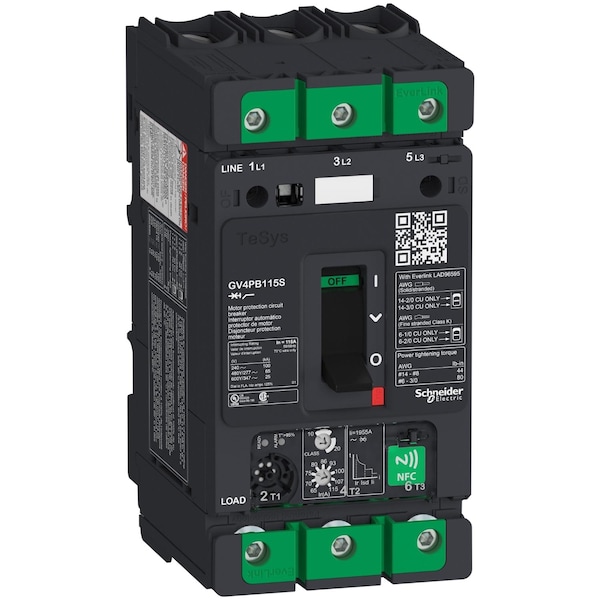

Motor Circuit Breaker, GV4PB Series, 115A, 3 Pole, 690V AC, 100kA at 240V AC
| Item | Motor Circuit Breaker |
|---|---|
| Series | GV4PB |
| Amps | 115A |
| Number of Poles | 3 |
| AC Voltage Rating | 690V AC |
| Circuit Breaker Actuator | Toggle |
| Max. AIR Rating | 100kA at 240V AC |
| Trip Type | Thermal Magnetic, Electronic |
| Terminal Connection | Connectors |
| Width | 3.19 in |
| Depth | 4.57 in |
| Height | 6.73 in |
| DC Voltage Rating | Not Rated |
| Application | Motor Protection |
| High Amp Trip Setting | 1,955 A |
| Interrupt Rating | 100 kA at 240/380/415V AC, 65 kA at 480Y/277V AC, 25 kA at 600Y/347V AC, 120 kA at 220/240V AC, 70 kA at 440V AC, 30 kA at 500V AC, 18 kA at 525V AC, 10 kA at 660/690V AC |
| Color | Gray |
| Standards | IEC, UL, CSA |
| Features | Mercury Free; PVC Free |
| Package Quantity | 1 |
