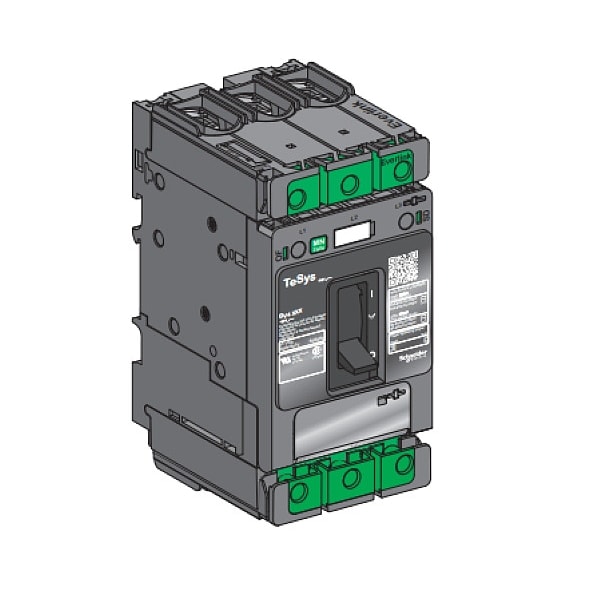

Motor Circuit Protector, BV4 Series, 50A, 3 Pole, 347/600V AC
| Item | Motor Circuit Protector |
|---|---|
| Series | BV4 |
| Amps | 50A |
| Number of Poles | 3 |
| AC Voltage Rating | 347/600V AC |
| Circuit Breaker Type | High Interrupting Capacity |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On Panelboard |
| Trip Type | Magnetic |
| Instantaneous Trip | Instantaneous |
| Terminal Connection | Plug In |
| Width | 3.19 in |
| Depth | 4.57 in |
| Height | 6.38 in |
| DC Voltage Rating | Not Rated |
| Standards | CSA, UL Listed |
| Max. Operating Temp. | 158 deg F |
| High Amp Trip Setting | 650 A |
| Min. Wire Size | 14 AWG |
| Min. Operating Temp. | -13 deg F |
| Low Amp Trip Setting | 176 A |
| Max. Wire Size | 1/0 AWG |
| Package Quantity | 1 |
