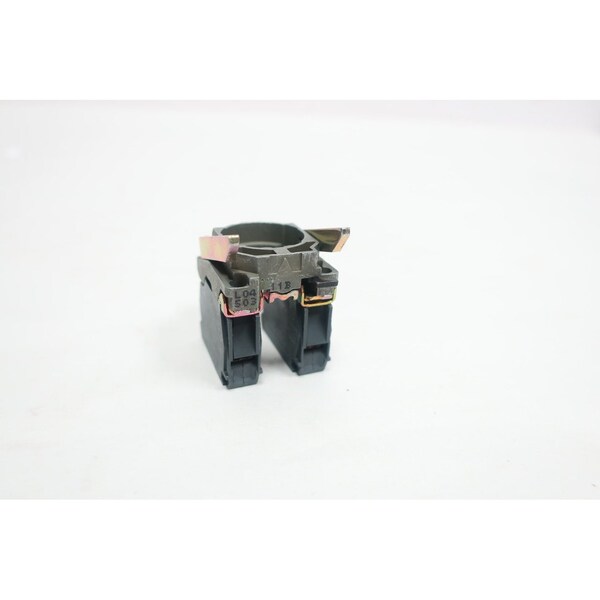

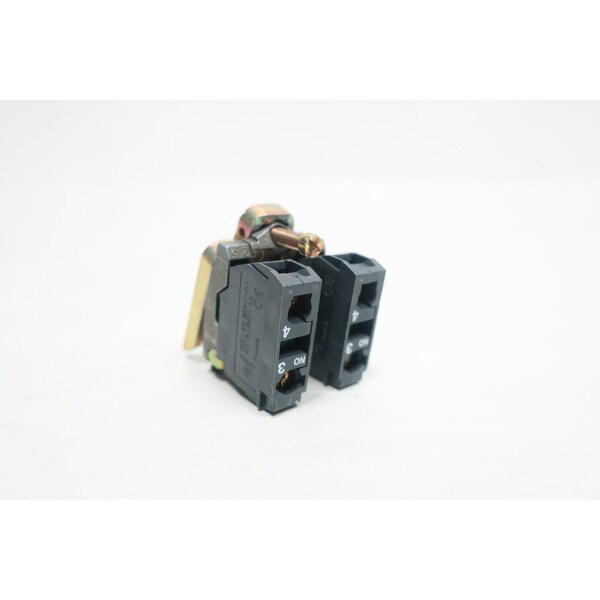

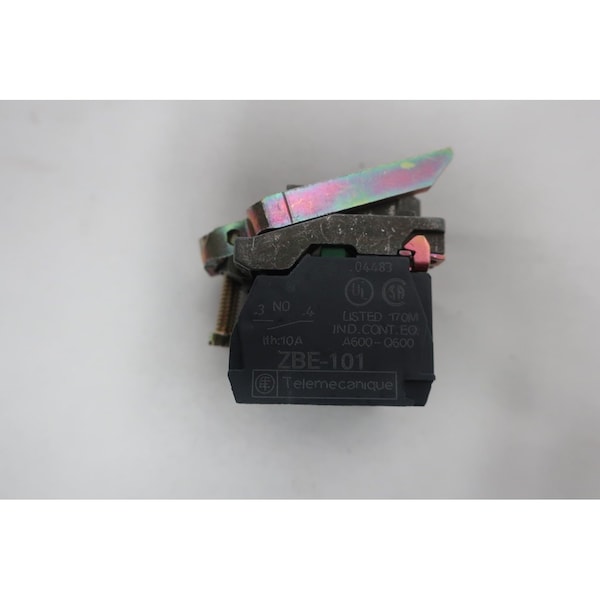

Mounting Base Terminal and Contact Block
| Standards | JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || UL 508 || JIS C8201-1 |
|---|---|
| Mechanical Durability | 5,000,000 cycle |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Cad Overall Depth | 37 mm |
| Contacts Usage | standard contacts |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
| Ambient Air Temperature For Storage | -40-70°C |
| Device Composition | body || fixing collar |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Positive Opening | without |
| Electrical Reliability | λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Product Or Component Type | complete body/contact assembly |
| Protective Treatment | TH |
| Ambient Air Temperature For Operation | -40-70°C |
| Contact Operation | slow-break |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Electrical Durability | 10000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Head Type | Standard |
| Cad Overall Width | 30 mm |
| Cad Overall Height | 47 mm |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Terminals Description Iso N°1 | (13-14)NO |
| Device Presentation | basic sub-assemblies |
| Shape Of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Operating Torque | 0.05 N.m NO changing electrical state |
| Device Short Name | ZB4 |
| Contacts Material | silver alloy |
| Contacts Type And Composition | 2 NO |
| Fixing Collar Material | zamak |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Product Certifications | BV || CSA || UL || DNV || LROS (Lloyds register of shipping) || GL |
| Contact Block Type | single |
| Operating Travel | 2.6 mm NO changing electrical state) || 4.3 mm total travel) |
| [Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| Package Quantity | 1 |
