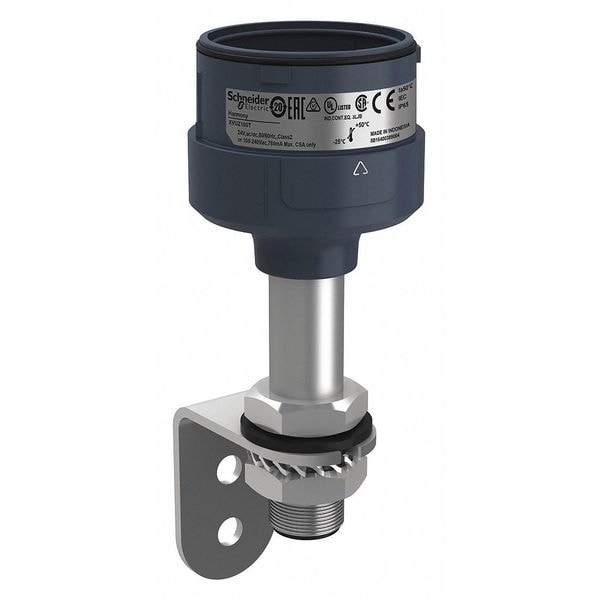

Mounting Bracket and Tube, 100mm Dia.
| Item | Mounting Bracket and Tube |
|---|---|
| Standards | CE, CSA Certified, RoHS, UL Listed |
| Diameter | 100 mm |
| Housing Material | Polycarbonate, ABS, PBT, Aluminum |
| Includes | 100 mm Aluminum Pole |
| Height | 3-39/64 in |
| For Use With | XVU Tower Lights |
| Length | 10-39/64 in |
| Width | 3-39/64 in |
| Rating | IP42 |
| Operating Temp. | -25 to 122 deg F |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Overall Height | 3-5/8 in |
| Product Type | Tower Light Mount |
| Housing Color | Black |
| Overall Diameter | 3-15/16 in |
| Operating Temperature - Minimum | -25 deg C |
| Overall Length | 5-7/8 in |
| Overall Width | 3-5/8 in |
| Operating Temperature - Maximum | 50 deg C |
| Connection Type | Push-In Terminal |
| IP Rating | IP32 |
| Compatible Series | XVU |
| Country of Origin (subject to change) | Indonesia |
| Package Quantity | 1 |
