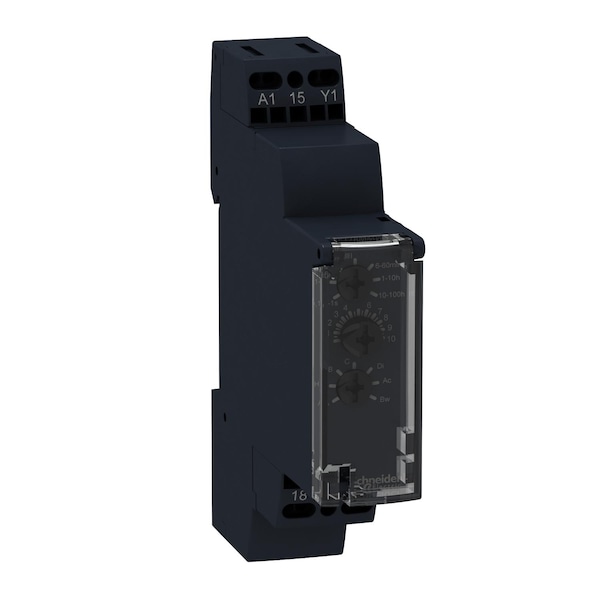

Relé multifunción, Relés temporizadores Harmony, 8A, 1CO, 0.1s a 10h, retardo de encendido, 12 a 240V AC DC.
| Item - Relay | Relay |
|---|---|
| Function - Timing Relay | power on-delay || on-delay and off-delay || interval || off-delay || symmetrical flashing; multifunction |
| Adjustment Method - Timer | selector switch front panel |
| Contact Form - Relay | 1 C/O |
| Min. Time Setting - Timer | 1...10 h || 0.1...1 s || 6...60 s || 10...100 h || 6...60 min || 1...10 s || 1...10 min |
| Power Consumption - Relay | 0-3 VA 240 V AC; 1.5 W 240 V DC |
| Contact Material | Cadmium Free |
| Input or Control Voltage Range | 0.85...1.1 Us |
| Standards | cULus|| CSA |
| Electrical Connection | 35 mm DIN rail conforming to EN/IEC 60715 |
| Hz - Electrical | 50/60 Hz |
| Depth | 72 mm |
| Input Voltage | 250 V |
| Item | Ten Function Timer,240V,8A |
| Number of Functions | 10 |
| Type of Output | Relay |
| Width | 17.5 mm |
| Height | 90 mm |
| Reset Time | 120 msec (on de-energisation typical) |
| Maximum Delay Response | 100 msec |
| Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
| Device Short Name | RE17R |
| Functionality | multifunction |
| Compatibility Code | RE17 |
| Setting Accuracy of Time Delay | +/- 10 % of full scale 25°C IEC 61812-1 |
| Marking | CE |
| Mounting Support | 35 mm DIN rail conforming to IEC 60715 |
| Connections - Terminals | screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
| Ip Degree of Protection | IP20 IEC 60529 terminal block), IP40 IEC 60529 housing), IP50 IEC 60529 front panel) |
| Vibration Resistance | 20 m/s² 10-150 Hz)IEC 60068-2-6 |
| Time Delay Type | power on-delay, on-delay and off-delay, interval, off-delay, symmetrical flashing |
| Electromagnetic Compatibility | electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2, electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2, susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3, electrical fast transient/burst immunity test 1 kV capacitive connecting clip) level 3 IEC 61000-4-4, electrical fast transient/burst immunity test 2 kV direct) level 3 IEC 61000-4-4, 1.2/50µs shock waves immunity test 1 kV differential mode) level 3 IEC 61000-4-5, 1.2/50µs shock waves immunity test 2 kV common mode) level 3 IEC 61000-4-5, conducted RF disturbances 10 V 0.15...80 MHz) level 3 IEC 61000-4-6, voltage dips and interruptions immunity test 0 % 1 cycle) IEC 61000-4-11, voltage dips and interruptions immunity test 70 % 25/30 cycles) IEC 61000-4-11, conducted and radiated emissionsclass B EN 55022 |
| [Uimp] Rated Impulse Withstand Voltage | 5 kV 1.2/50µs |
| Ambient Air Temperature For Operation | -20-60°C |
| Mounting Position | any position in relation to normal vertical mounting plane |
| Operating Rate In Hz | 10 Hz |
| Impulse Duration | 100 ms with load in parallel typical, 30 ms typical |
| Ambient Air Temperature For Storage | -30-60°C |
| Housing Material | self-extinguishing |
| Immunity To Microbreaks | 20 msec |
| Mechanical Durability | 10000000 cycles |
| Tightening Torque | 0.6-1 N.m IEC 60947-1 |
| Nominal Output Current | 8 A |
| Maximum Power Consumption In W | 1.5 W 240 V DC |
| Power Consumption In Va | 0-3 VA 240 V AC |
| Temperature Drift | °, +/- 0.05 % C |
| Electrical Durability | 100000 cycles resistive 8 A 250 V AC |
| Range of Product | Harmony Timer Relays |
| Creepage Distance | 4 kV/3 IEC 60664-1 |
| [Us] Rated Supply Voltage | 12...240 V AC/DC 50/60 Hz |
| Maximum Switching Voltage | 250 V AC |
| Breaking Capacity | 2,000 VA |
| Insulation Resistance | 100 MOhm 500 V DC IEC 60664-1 |
| On-Load Factor | 1 |
| Dielectric Strength | 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1 |
| Relative Humidity | 93-93 %, without condensation IEC 60068-2-30 |
| Maximum Switching Current | 8 A AC/DC |
| Repeat Accuracy | +/- 0.5 % IEC 61812-1 |
| Local Signalling | LED indicator on steady: relay energised, no timing in progress, LED indicator 80 % ON and 20 % OFF flashing: timing in progress, LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L) |
| Voltage Drift | +/- 0.2 %/V |
| Minimum Switching Current | 10 mA 5 V DC |
| Supply Frequency | 50...60 Hz +/- 5 % |
| Package Quantity | 1 |
