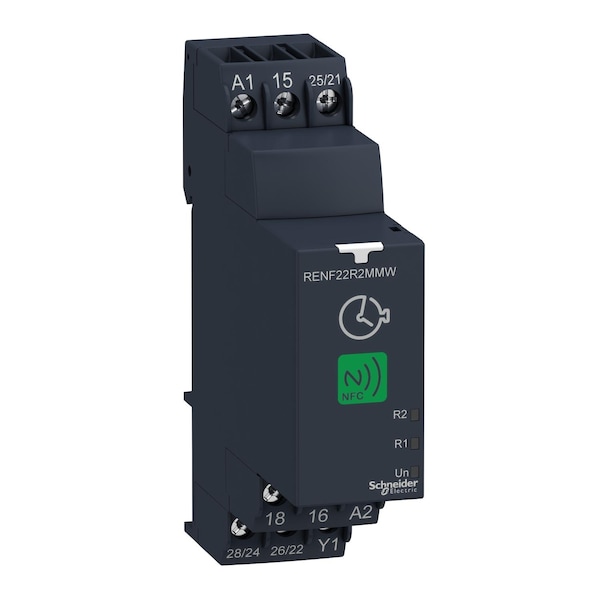

Relé multifunción, Relés temporizadores Harmony, 8A, 2CO, 0.05s a 999h asimétricos en retardo y retardo de apagado 24 a 240V CA CC
| Item - Relay | Relay |
|---|---|
| Function - Timing Relay | power on-delay || on-delay and off-delay || pulse delay || asymmetrical on-delay and off-delay || interval || off-delay || symmetrical flashing || safe-guard || star-delta || asymmetrical flashing || bistable |
| Min. Time Setting - Timer | 0.1 s...999 h |
| Contact Form - Relay | 2 C/O timed contact, cadmium free || 1 C/O timed and instantaneous contact, cadmium free |
| Power Consumption - Relay | 3-3 VA 240 V AC; 1.5 W 240 V DC || 0.6 W 24 V DC |
| Min. On/Off Pulse | 100 ms with load in parallel || 60 ms no-load |
| Number of Functions | 28 |
| Standards | IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-4, EN 61812-1, IEC 61000-6-3 |
| Type of Output | Relay |
| Operating Functions | Android |
| Operating Voltage | 24...240 V AC/DC |
| Item | NFC modular timing relay,8 A,2 CO,0.1 |
| Input Voltage | <= 2.4 V |
| Input or Control Voltage Range | 0.85...1.1 Un |
| Electrical Connection | 35 mm DIN rail conforming to EN/IEC 60715 |
| Width | 22.5 mm |
| Time Delay Range | 0.05 s...999 h |
| Maximum Switching Voltage | 250 V |
| [Uimp] Rated Impulse Withstand Voltage | 5 kV 1.2/50µs IEC 60664-1 |
| Minimum Switching Current | 10 mA 5 V |
| Switching Capacity In Va | 2,000 VA |
| Power Consumption In Va | 3-3 VA 240 V AC |
| Insulation Resistance | 100 MOhm 500 V DC IEC 60664-1 |
| Product or Component Type | relay |
| Product Compatibility | NFC enabled mobile device |
| Vibration Resistance | 20 m/s² 10-150 Hz)IEC 60068-2-6 |
| Supply Frequency | 50...60 Hz +/- 5 % |
| Tightening Torque | 0.6-1 N.m IEC 60947-1, 5.3-8.8 lbf.in IEC 60947-1 |
| Minimum Pulse Duration | 100 ms with load in parallel, 60 ms no-load |
| Nominal Output Current | 8 A |
| Repeat Accuracy | +/- 0.2 % 10 s...999 h, +/- 0.5 % 100 ms...10 s, +/- 0.7 % 50...100 ms |
| Discrete Output Type | relay |
| Operating System | Android |
| Maximum Delay Response | 100 msec |
| Housing Material | self-extinguishing |
| Shock Resistance | 15 gn not operating 11 ms IEC 60068-2-27, 5 gn in operation 11 ms IEC 60068-2-27 |
| Voltage Drift | +/- 0.2 %/V |
| Overvoltage Category | III IEC 60664-1 |
| Contacts Type And Composition | 2 C/O timed contact, cadmium free, 1 C/O timed and instantaneous contact, cadmium free |
| Relative Humidity | 95-95 % 25-55°C |
| Maximum Operating Frequency | 13.56 MHz |
| Creepage Distance | 4 kV/3 IEC 60664-1 |
| Mechanical Durability | 10000000 cycles |
| Function Available | A- Power on-delay relay-2 C/O, Ac- On-delay and off-delay relay w/ control signal-2 C/O, Ad- Pulse delayed relay w/ control signal-2 C/O, Ah- Pulse delayed relay (single cycle) w/ control signal-2 C/O, Ak- Asymmetrical on-delay and off -delay relay w/ control signal-2 C/O, At- Power on-delay relay w/ pause/summation (Y1)-2 C/O, B- Single interval relay w/ control signal-2 C/O, Bw- Double interval relay w/ control signal-2 C/O, C- Off-delay relay w/ control signal-2 C/O, D- Symmetrical flashing relay (starting pulse-off)-2 C/O, Di- Symmetrical flashing relay (starting pulse-on)-2 C/O, Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (Y1)-2 C/O, Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1)-2 C/O, H- Interval relay-2 C/O, Ht- Interval relay w/ pause/summation (Y1)-2 C/O, Li- Asymmetrical flashing relay (starting pulse-on)-2 C/O, Lt- Asymmetrical fl ashing relay (starting pulse-off) w/ pause/summation (Y1)-2 C/O, Lit- Asymmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1)-2 C/O, N- Safe-guard relay-2 C/O, O- Delayed Safe-guard relay-2 C/O, P- Pulse delayed relay w/ fixed pulse length-2 C/O, Pt- Pulse delayed relay w/ fixed pulse length and pause/summation-2 C/O, Qt- Star-delta relay (2 CO outputs w/ split common)-2 C/O, Qtt- Star-delta relay (2 CO outputs w/ split common) w/ pause/summation (Y1)-2 C/O, TI- Bistable relay w/ control signal on-2 C/O, Tt- Retriggerable bistable relay w/ control signal on-2 C/O, W- Interval relay w/ control signal off-2 C/O, L- Asymmetrical flashing relay (starting pulse-off)-2 C/O |
| [Us] Rated Supply Voltage | 24...240 V AC/DC |
| Power Consumption In W | 1.5 W 240 V DC, 0.6 W 24 V DC |
| Electromagnetic Compatibility | electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11, radiated emission class B conforming to EN 55022, conducted emission class A conforming to EN 55022, electromagnetic field immunity test - test level: 3 V/m level 2 (1.4 GHz...2 GHz) conforming to IEC 61000-4-3, electromagnetic field immunity test - test level: 1 V/m level 1 (2...2.7 GHz) conforming to IEC 61000-4-3 |
| Dielectric Strength | 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply with basic insulation, basic insulation |
| Immunity To Microbreaks | 10 msec |
| Software Designation | Zelio NFC downloadable from Google Play store) |
| Time Delay Type | power on-delay, on-delay and off-delay, pulse delay, asymmetrical on-delay and off-delay, interval, off-delay, symmetrical flashing, safe-guard, star-delta, asymmetrical flashing, bistable |
| Electrical Durability | 100000 cycles for resistive load, 8 A at 250 V, AC |
| Range of Product | Harmony Timer Relays |
| Temperature Drift | °, +/- 0.05 % C |
| Device Short Name | RENF22 |
| Operating Distance | 10 mm |
| Nominal Power | 0.0002 mW |
| Ambient Air Temperature For Operation | -20-60°C |
| Mounting Support | 35 mm DIN rail conforming to IEC 60715 |
| Voltage Range | 0.85...1.1 Un |
| Mounting Position | any position |
| Pollution Degree | 3 IEC 60664-1 |
| Ambient Air Temperature For Storage | -40-70°C |
| Connections - Terminals | screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
| Ip Degree of Protection | IP40 housing: conforming to IEC 60529, IP40 front face: conforming to IEC 60529, IP20 terminals: conforming to IEC 60529 |
| Software Version | V4.4 and above |
| Local Signalling | Un, green LED steady)power ON, R1, amber LED steady)relay energised, R2, amber LED steady)relay energised, pairing, green LED steady)communication status, Un, green LED fast blinking)diagnosis mode, R1, amber LED blinking)timing in progress, R2, amber LED blinking)timing in progress |
| Maximum Switching Current | 8 A |
| Setting Accuracy of Time Delay | +/- 1 % 1...999 h 25°C, +/- 2 % 1...3600 s 25°C, +/- 20 ms 100 ms...10 s 25°C, +/- 30 ms 50...100 ms 25°C |
| Reset Time | 120 msec (on de-energisation) |
| Package Quantity | 1 |
