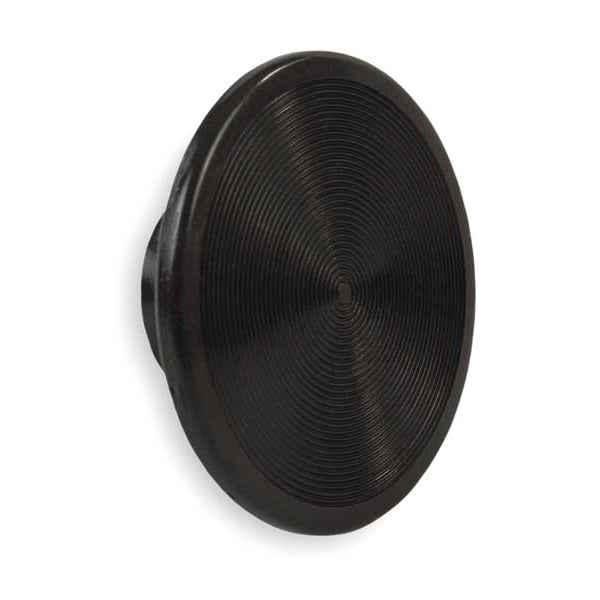

Cabeza de hongo, 30 mm, negro
| Size | 30 mm |
|---|---|
| Head Material | Plastic |
| NEMA Rating | 1, 12, 3R, 4, 4X |
| Color | Black |
| Legend | Not Applicable |
| Item | Mushroom Head |
| Basic Material | Plastic |
| For Use With | Schneider Push Buttons KR25 and SKR25 Series |
| Connection Type | Screw-On |
| Standards | CSA C22.2 No.14, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/ISO 13850, JIS C4520, JIS C852, UL 508 |
| IP Rating | IP66 |
| Operator Size | 2-1/4 in dia |
| Illuminated / Non-Illuminated | Non-Illuminated |
| Width | 40 mm |
| Depth | 116 mm |
| Height | 40 mm |
| Overall Depth | 4.57 in |
| Compatible with Brand | Square D |
| Overall Width | 1.57 in |
| NEMA Enclosure Rating | Not Applicable |
| Compatible with Series | 9001K, 9001SK |
| Head Color | Black |
| Overall Height | 1.57 in |
| Manufacturer Warranty Length | 18 mo |
| Panel Cutout Diameter | 30 mm |
| Mushroom Head Diameter | 35 mm |
| Head Style | Mushroom Head |
| Compatible Operator Illumination | Non-Illuminated |
| Device Short Name | 9001K |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Mounting Diameter | 30 mm |
| Ambient Air Temperature For Operation | -25-70°C |
| Ambient Air Temperature For Storage | -40-70°C |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Protective Treatment | TC |
| Overvoltage Category | class II IEC 61140 |
| Cap/Operator Or Lens Colour | black |
| Operator Profile | black mushroom Ø 35 mm |
| Product Or Component Type | mushroom button |
| Device Presentation | basic element |
| Shape Of Signaling Unit Head | round |
| Accessory / Separate Part Destination | push-button |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6 |
| Operating Position | any position |
| Product Certifications | NEMA || UL 508 |
| Mechanical Durability | 5,000,000 cycle |
| Package Quantity | 1 |
