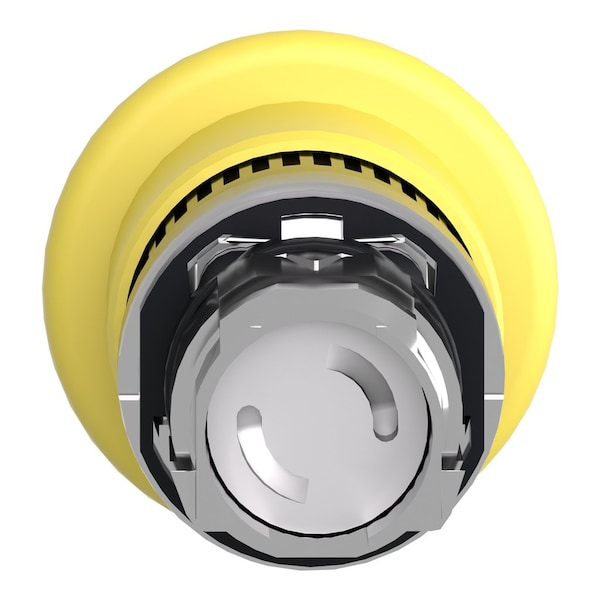

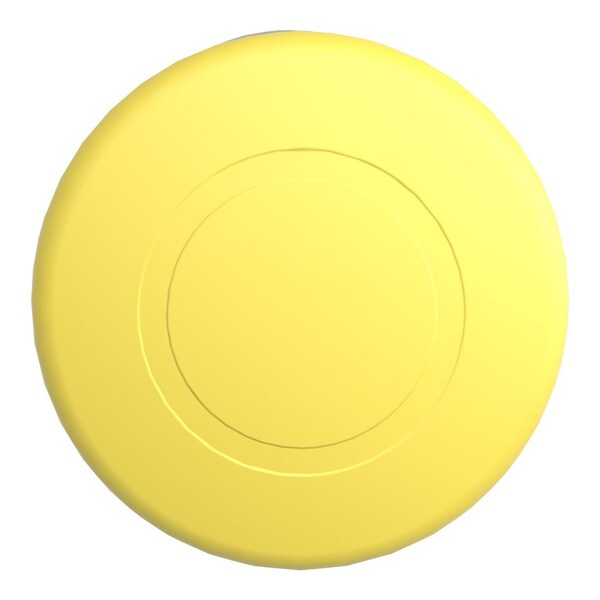

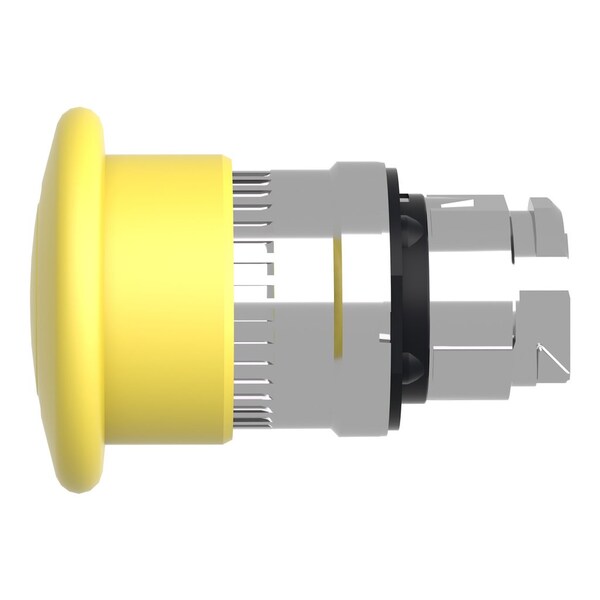

Botón de seta de 40mm, Harmony XB4, metálico, amarillo, de 22mm, empuje de tracción de bloqueo.
| Item | Yellow 040 mushroom pushbutton head 022 |
|---|---|
| Bezel Material | chromium plated metal |
| Standards | EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-1 |
| Shape Of Signaling Unit Head | round |
| Product Or Component Type | head for non-illuminated push-button |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Device Presentation | basic element |
| Operator Profile | yellow mushroom Ø 40 mm, unmarked |
| Overvoltage Category | class I IEC 60536 |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Head Type | Standard |
| Protective Treatment | TH |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Mechanical Durability | 300,000 cycle |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Ambient Air Temperature For Operation | -40-70°C |
| Type Of Operator | latching |
| Ik Degree Of Protection | IK06 IEC 50102 |
| Mounting Diameter | 22 mm |
| Ambient Air Temperature For Storage | -40-70°C |
| Product Certifications | LROS (Lloyds register of shipping) || CSA || UL Listed || DNV || GL || BV |
| Reset | push-pull |
| Electrical Composition Code | C11 3 single front mounting || C15 1 single front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C10 4 single and double front mounting |
| Device Short Name | ZB4 |
| Cap/Operator or Lens Colour | yellow |
| Range of Product | Harmony XB4 |
| Package Quantity | 1 |
