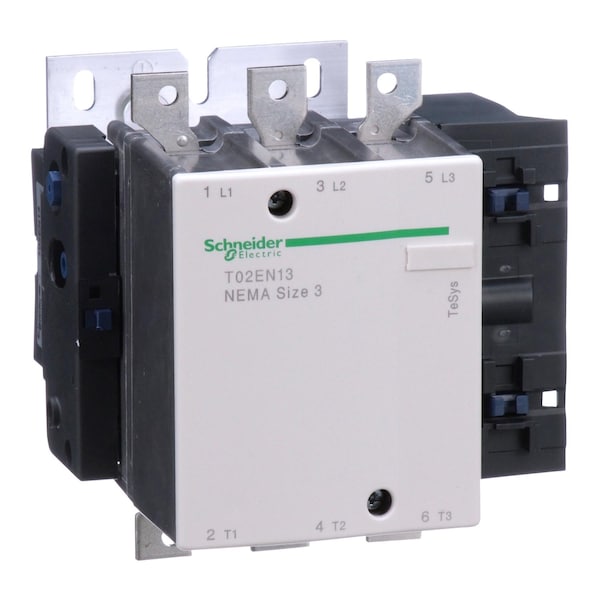

Contactor NEMA, TeSys N, no reversible, Tamaño 3, 90A, 50HP a 460VCA, 3 polos, 3 fases, bobina de 120VCA 50/60Hz, abierto.
| Item | Contactor Tesys,NEMA Size 3 3P,120VAC |
|---|---|
| Height | 6.38 in |
| Width | 6.44 in |
| Depth | 6.68 in |
| Poles Description | 3P |
| Auxiliary Contact Composition | 1 NO |
| Contactor Application | non-reversing |
| Product Or Component Type | Contactor |
| [Uc] Control Circuit Voltage | 120 V AC |
| Nema Size | 3 |
| Control Circuit | common control circuit |
| Phase | 3 phase |
| [Ue] Rated Operational Voltage | 600 V AC |
| Maximum Horse Power Rating | 25 hp 200 V AC || 30 hp 230 V AC || 50 hp 460 V AC || 50 hp 575 V AC |
| Line Rated Current | 90 A |
| Nema Degree Of Protection | not rated (open device) |
| Product Certifications | UL Listed || CSA |
| Electrical Connection | lugs ordered separately |
| Range of Product | TeSys N |
| Package Quantity | 1 |
