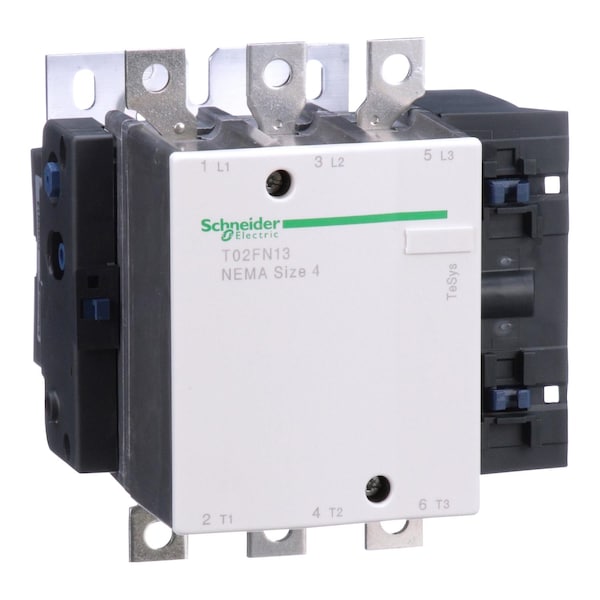

Contacto NEMA, TeSys N, no reversible, Tamaño 4, 135A, 100HP a 460VAC, 3 polos, 3 fases, bobina de 120VAC 50/60Hz, abierto.
| Item | Contactor Tesys,NEMA Size 4 3P,120VAC |
|---|---|
| Height | 6.69 in |
| Width | 6.44 in |
| Depth | 6.68 in |
| Product Or Component Type | Contactor |
| [Uc] Control Circuit Voltage | 120 V AC |
| Product Certifications | UL Listed || CSA |
| Phase | 3 phase |
| Auxiliary Contact Composition | 1 NO |
| Line Rated Current | 135 A |
| Maximum Horse Power Rating | 40 hp 200 V AC || 50 hp 230 V AC || 100 hp 460 V AC || 100 hp 575 V AC |
| [Ue] Rated Operational Voltage | 600 V AC |
| Poles Description | 3P |
| Contactor Application | non-reversing |
| Control Circuit | common control circuit |
| Nema Degree Of Protection | not rated (open device) |
| Electrical Connection | lugs ordered separately |
| Nema Size | 4 |
| Motor Horsepower Rating HP | 40 hp 200 V AC; 50 hp 230 V AC; 100 hp 460 V AC; 100 hp 575 V AC |
| Range of Product | TeSys N |
| Package Quantity | 1 |
