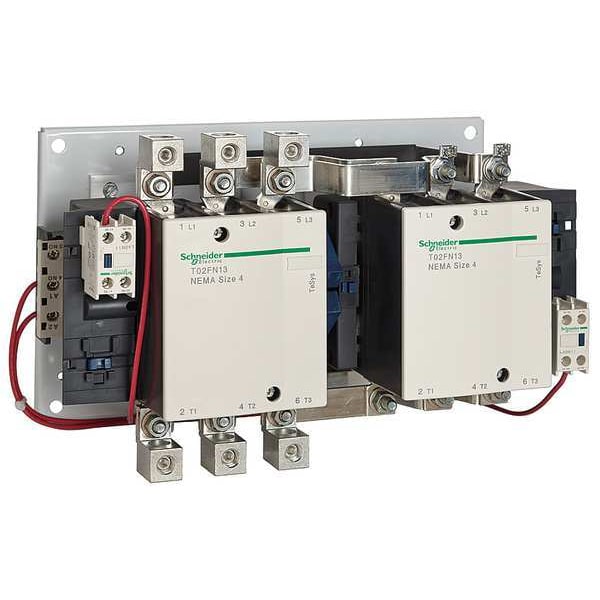

Contacto Magnético NEMA, 810A, 120VCA, NEMA7.
| Item | NEMA Magnetic Contactor |
|---|---|
| Action | Reversing |
| Full Load Amps | 810 A |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| NEMA Contactor Size | 7 |
| Reversing | Yes |
| Height | 22-1/4 in |
| Width | 31.38 in |
| HP @ 3 Phase - 575V | 600 hp |
| Depth | 10.3 in |
| HP @ 3 Phase - 240V | 300 hp |
| HP @ 3 Phase - 480V | 600 hp |
| Enclosure NEMA Rating | No Enclosure |
| Standards | CSA, UL Listed |
| NEMA Size | 7 |
| Frame / Series / Class / Code | TeSys |
| Hz | 40/400 |
| Auxiliary Contact Form | 1NO |
| Series | TeSys N |
| Auxiliary Contact Composition | 1 NO |
| Poles Description | 3P |
| [Uc] Control Circuit Voltage | 120 V AC |
| Contactor Application | reversing |
| Line Rated Current | 810 A |
| Control Circuit | common control circuit |
| Nema Degree Of Protection | not rated (open device) |
| Product Or Component Type | Contactor |
| Product Certifications | UL Listed || CSA |
| Phase | 3 phase |
| [Ue] Rated Operational Voltage | 600 V AC |
| Maximum Horse Power Rating | 300 hp 230 V AC || 600 hp 460 V AC || 600 hp 575 V AC |
| Electrical Connection | lugs ordered separately |
| Includes Auxiliary Contacts | Yes |
| Frequency | 50/60 Hz |
| Horsepower @ Single Phase - 240V AC | 300 HP |
| Overall Height | 22.52 in |
| Overall Depth | 10.3 in |
| Horsepower @ Three Phase - 600V AC | 600 HP |
| Embedded Surge Suppressor | No |
| Contactor Style | NEMA |
| NEMA Enclosure Rating | No Enclosure |
| Full Load Current - Inductive | 810 A |
| Maximum Voltage Rating | 600 V AC |
| Overall Width | 31.35 in |
| Coil Voltage | 120V AC |
| Horsepower @ Three Phase - 480V AC | 600 HP |
| Reversing Capability | Reversing |
| Horsepower @ Three Phase - 240V AC | 300 HP |
| Number of Auxillary Contacts | 1 |
| NEMA Enclosure Material | Not Applicable |
| Motor Horsepower Rating HP | 300 hp 230 V AC; 600 hp 460 V AC; 600 hp 575 V AC |
| Package Quantity | 1 |
