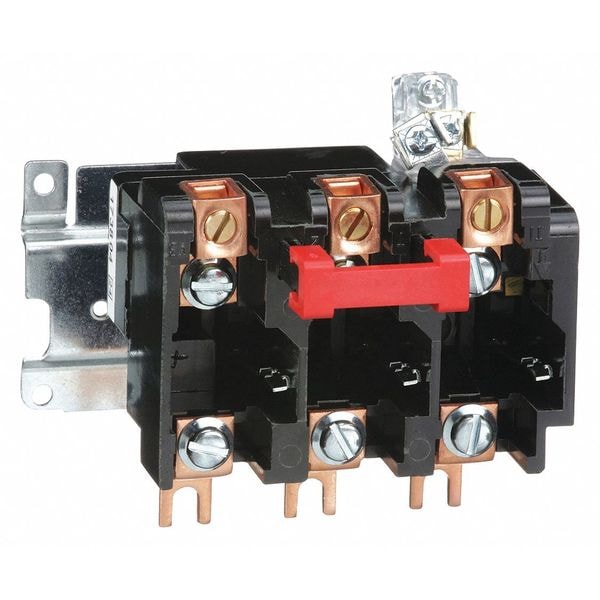

Relé de Sobrecarga NEMA, de 48 a 45A, 3 Polos
| Item | NEMA Overload Relay |
|---|---|
| Item - Relay | NEMA Style Overload Relay |
| Use With - Contactors and Starters | Mfr. Class 8536 Starters |
| Current Range | 48 to 45 A |
| Overload Relay Current Range | 45 to 48 A |
| NEMA Size | 2 |
| Trip Class - Overload | Determined by Thermal Units Selected |
| Width | 108.7 mm |
| Number of Poles | 3 |
| Thermal Units Required | Yes |
| Reset Type - Relay | No Reset |
| Sensing Method | Thermal |
| Height | 103.2 mm |
| Depth | 101.6 mm |
| Body Width - Relay | 4.28 in |
| Trip Class | 10/30 |
| For Use With | Class 8536 Starters |
| Body Depth - Relay | 4 in |
| Voltage | 600 V AC |
| Body Height - Relay | 4.06 in |
| Overall Height - Relay | 4.06 in |
| Standards | RoHS |
| Number Of Thermal Units Required | 3 |
| Phase | Three |
| Thermal Overload Type | melting alloy |
| Mounting Support | mounting plate |
| Product Destination | starter |
| [Ue] Rated Operational Voltage | 600 V AC |
| Overall Height | 4.06 in |
| Auxiliary Contact Form | 1 NC |
| Includes Thermal Units | No |
| Body Depth | 4 in |
| Number of Required Thermals | 3 |
| Body Height | 4.06 in |
| Mounting Style | Direct To Contactor |
| Compatible with Series | 9065 Motor Logic Solid State Overload Relays |
| Maximum Overload Relay Current Setting | 45 A |
| Body Width | 4.28 in |
| Maximum Voltage Rating | 600 V AC |
| Reset Type | No Reset |
| Overload Protection Type | Melting Alloy |
| Relay Style | NEMA |
| Package Quantity | 1 |
