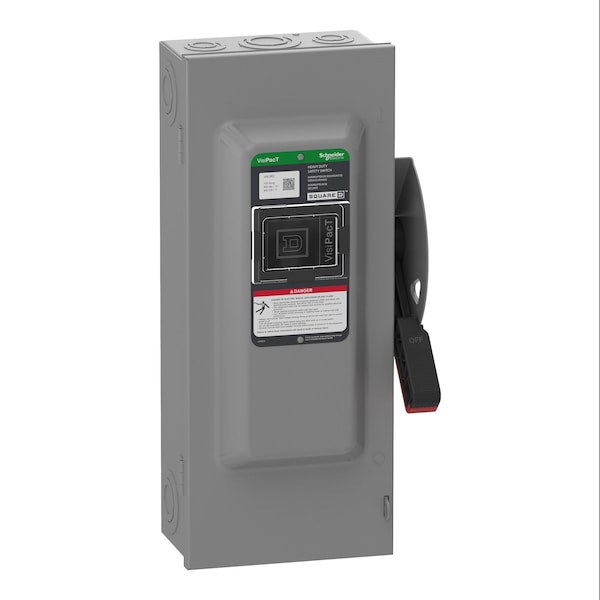

Interruptor de seguridad no fusible, 600V AC/DC, 3 polos
| Item | Safety Switch |
|---|---|
| Protection Method | Non-Fusible |
| Voltage | 600V AC/DC |
| Number of Poles | 3 |
| Phase | Three |
| Contact Form | 3PST |
| IP Rating | IP20 |
| Duty | Heavy Duty |
| Height | 21-3/4 in |
| Width | 9 in |
| Number of Wires | 3 |
| Depth | 7 in |
| Neutral Assembly Included | No |
| Includes | Dual Cover Interlock |
| Standards | EU RoHS, UL listed file E2875 |
| Maximum Enclosure Depth | 7.04 in |
| Mounting Style | Surface Mount |
| Environment | Indoor |
| Current Rating | 100 A |
| Enclosure Type | Enclosed |
| Series | F |
| For Fuse Class | Not Applicable |
| NEMA Enclosure Rating | 1 |
| Housing Material | Steel |
| Features | Quick Make/Break Operating Mechanism, Viewing Window |
| Number of Mounting Holes | 4 |
| Fuse Kit (Class R) | Mfr. No. RFK10 |
| Horsepower @ 600V AC | 100 HP |
| Includes Interlocked Receptacle | Yes |
| Compatible with Manufacturer Model Number | RFK10 |
| Number of Locks | 2 |
| Horsepower @ 240V AC | Not Rated |
| Horsepower @ 480V AC | 75 HP |
| Handle Color | Red, Black |
| Compatible with Manufacturer Model Number [NEW] | RFK10 |
| Compatible Manufacturer Part Number | RFK10 |
| Compatible Manufacturer Model Number | RFK10 |
| For Use with Mfr. Model Number | RFK10 |
| Awg Gauge | AWG 12...AWG 1/0 aluminium || AWG 14...AWG 1/0 copper |
| Nema Degree Of Protection | NEMA 1 steel |
| Series Name | heavy duty |
| Product Certifications | UL listed file E2875 |
| Disconnector Device Type | non-fusible disconnect |
| Line Rated Current | 100 A |
| Device Composition | field installed kit available |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Device Mounting | surface |
| Wiring Configuration | 3-wire |
| Product Or Component Type | Single Throw Safety Switch |
| Device Application | heavy application |
| Condition Of Use | suitable service entrancefor USA || suitable service entrancefor Mexico |
| Tightening Torque | 50-50 lbf.in (AWG 1...AWG 3/0) || 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10) |
| Electrical Connection | Lugs |
| Package Quantity | 1 |
