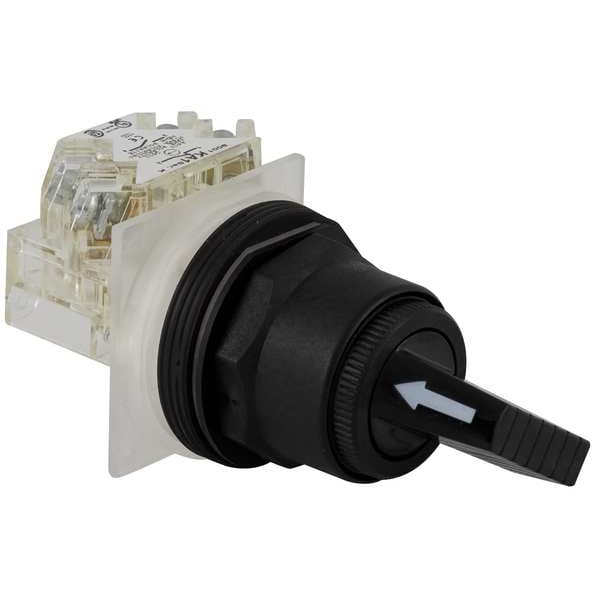

Interruptor selector no iluminado, 10A a 600VCA
| Item | Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Plastic |
| Type of Operator | Extended Lever |
| Contact Form | 1NO/1NC |
| Action | Maintained, Momentary |
| Cam | C |
| Operator Head Material | Polycarbonate |
| Color | Black |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Position | 3 |
| Bezel Material | Plastic |
| Bezel Color | Chrome |
| Key Removal | No Key |
| Switch Operation @ Position B | OO |
| Switch Operation @ Position D | No Fourth Position |
| Standards | CE, CSA LR24590 Class 3211 03, UL E78403 CCN NKCR |
| Contact Rating | 10A @ 600V AC |
| IP Rating | IP65 |
| NEMA Contact Rating Designation | A600, Q600 |
| Switch Operation @ Position A | OX |
| Switch Operation @ Position C | XO |
| Lamp Type | Not Applicable |
| Lamp Module Type | Not Applicable |
| Series | 9001K |
| Number of Positions | 3 |
| Lamp Voltage - Maximum | Not Applicable |
| Key Removal Position | Not Applicable |
| Switch Function @ 2nd Position | Off |
| Switch Function @ 4th Position | No Fourth Position |
| NEMA Enclosure Rating | 3, 4, 13, 12, 4X, 3R |
| Operator Illumination | Non-Illuminated |
| Switch Function @ 1st Position | On |
| Switch Function @ 3rd Position | On |
| Panel Cutout Diameter | 30 mm |
| Metal Operator Head Finish | Not Applicable |
| Package Quantity | 1 |
