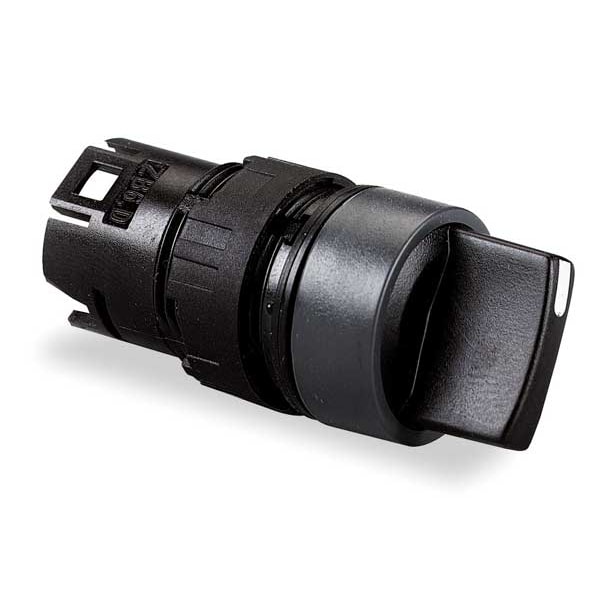

Interruptor selector no iluminado, 16mm, 3 posiciones, palanca
| Action | Maintained |
|---|---|
| Size | 16 mm |
| Basic Material | Plastic |
| NEMA Rating | 13, 4, 4X |
| Type of Operator | Lever |
| Operator Head Material | Plastic |
| Cam | No Cam Included |
| Color | Black |
| Operator Color | Black |
| Position | 3 |
| Item | Short-Handled Selector Switch |
| Bezel Color | Black |
| Key Removal | No Key |
| Bezel Material | Plastic |
| IP Rating | IP65 |
| Switch Operation @ Position C | XX |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, JIS C852, UL 508 |
| Key Number | No Key |
| Switch Operation @ Position D | No Fourth Position |
| Switch Operation @ Position A | OO |
| Switch Operation @ Position B | OX |
| Series | XB6 |
| Cad Overall Depth | 43 mm |
| Shape Of Signaling Unit Head | round |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70°C |
| Protective Treatment | TC |
| Cad Overall Width | 18 mm |
| Operator Position Information | 3 positions 60° |
| Device Short Name | ZB6 |
| Product Or Component Type | head for selector switch |
| Product Certifications | GOST, CCC || UL || CSA |
| Ambient Air Temperature For Operation | -25-70°C |
| Nema Degree Of Protection | NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94 |
| Vibration Resistance | +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6 |
| Electrical Shock Protection Class | class II IEC 61140 |
| Operator Profile | black standard handle |
| Cad Overall Height | 18 mm |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Mounting Diameter | 16 mm |
| Operator Head Type | Short-Handled Knob |
| Switch Function @ 1st Position | Not Applicable |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 4X, 2, 3R |
| Operator Illumination | Non-Illuminated |
| Hazardous Location Specification | Not Rated |
| Switch Function @ 2nd Position | Not Applicable |
| Panel Cutout Diameter | 16 mm |
| Key Removal Position | Not Applicable |
| Includes Operator Key | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Operator Head Color | Black |
| Number of Positions | 3 |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Function @ 3rd Position | Not Applicable |
| Package Quantity | 1 |
