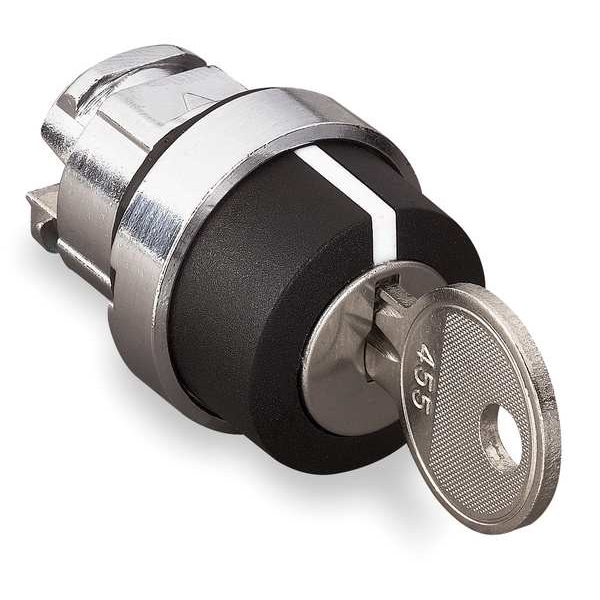

Interruptor selector no iluminado, 22mm, 3 posiciones, con llave.
| Item | Keyed Selector Switch |
|---|---|
| Size | 22 mm |
| Basic Material | Metal |
| Type of Operator | Keyed |
| Action | Maintained |
| Cam | No Cam Included |
| Operator Head Material | Metal |
| Operator Color | Black |
| Color | Black |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X |
| Position | 3 |
| Bezel Material | Chrome Plated Metal |
| Key Removal | Left, Right |
| Bezel Color | Chrome |
| Switch Operation @ Position D | No Fourth Position |
| Switch Operation @ Position B | OXOX |
| Switch Operation @ Position A | XOOX |
| Switch Operation @ Position C | OXXO |
| Key Number | 455 |
| IP Rating | IP69K, IP67, IP69, IP66 |
| Includes | Key |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GB 14048.5, UL 508 |
| Series | XB4 |
| Ik Degree Of Protection | IK06 with keyhole cover ZBGP conforming to IEC 50102 |
| Type Of Keylock | key 455 |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Operator Position Information | 3 positions +/- 45° |
| Operator Profile | black key switch |
| Head Type | Standard |
| Shape Of Signaling Unit Head | round |
| Cad Overall Depth | 72 mm |
| Protective Treatment | TH |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Device Short Name | ZB4 |
| Ambient Air Temperature For Storage | -40-70°C |
| Product Certifications | UL Listed || GL || LROS || CSA || BV || DNV |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Mounting Diameter | 22 mm |
| Electrical Composition Code | C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting |
| Overvoltage Category | class I IEC 60536 |
| Cad Overall Width | 29 mm |
| Product Or Component Type | head for key selector switch |
| Cad Overall Height | 29 mm |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Key Withdrawal Position | left, right |
| Ambient Air Temperature For Operation | -40-70°C |
| Mechanical Durability | 1,000,000 cycle |
| Device Presentation | basic element |
| Switch Function @ 4th Position | No Fourth Position |
| Panel Cutout Diameter | 22 mm |
| Hazardous Location Specification | Not Rated |
| Switch Function @ 3rd Position | Not Applicable |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 4X, 2 |
| Key Removal Position | Left, Right |
| Operator Head Color | Black |
| Operator Head Type | Keyed |
| Switch Function @ 2nd Position | Not Applicable |
| Operator Illumination | Non-Illuminated |
| Number of Positions | 3 |
| Includes Operator Key | Key Included |
| Switch Function @ 1st Position | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Package Quantity | 1 |
