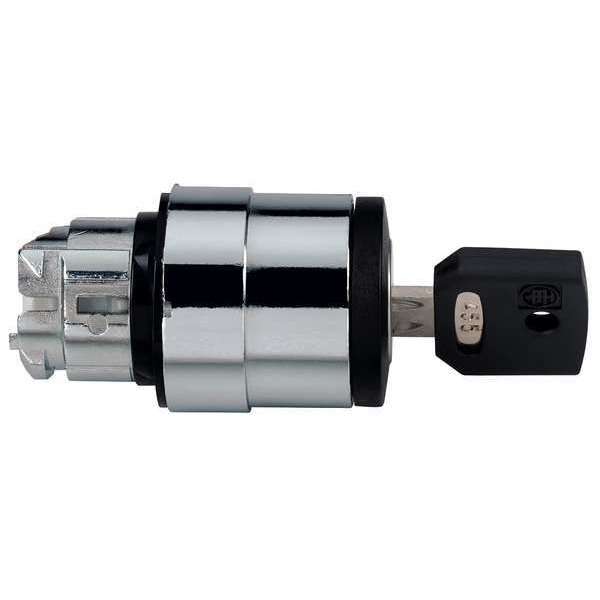

Interruptor selector no iluminado, 22mm, 3 posiciones, con llave
| Action | Maintained |
|---|---|
| Size | 22 mm |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X |
| Type of Operator | Keyed |
| Operator Head Material | Metal |
| Cam | No Cam Included |
| Color | Black |
| Item | Keyed Selector Switch |
| Bezel Material | Chrome Plated Metal |
| Basic Material | Metal |
| Includes | Key |
| Standards | Bureau Veritas, CSA, DNV, GL, LROS, UL Listed |
| Key Number | 458A |
| Key Removal | Left |
| Switch Operation @ Position A | XOOX |
| Position | 3 |
| Switch Operation @ Position B | OXOX |
| IP Rating | IP69K, IP67, IP69, IP66 |
| Switch Operation @ Position C | OXXO |
| Bezel Color | Chrome |
| Operator Color | Black |
| Switch Operation @ Position D | No Fourth Position |
| Series | XB4 |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 4X, 2 |
| Hazardous Location Specification | Not Rated |
| Switch Function @ 1st Position | Not Applicable |
| Switch Function @ 4th Position | No Fourth Position |
| Panel Cutout Diameter | 22 mm |
| Switch Function @ 2nd Position | Not Applicable |
| Switch Function @ 3rd Position | Not Applicable |
| Operator Head Type | Keyed |
| Key Removal Position | Left |
| Includes Operator Key | Key Included |
| Operator Head Color | Black |
| Number of Positions | 3 |
| Operator Illumination | Non-Illuminated |
| Package Quantity | 1 |
