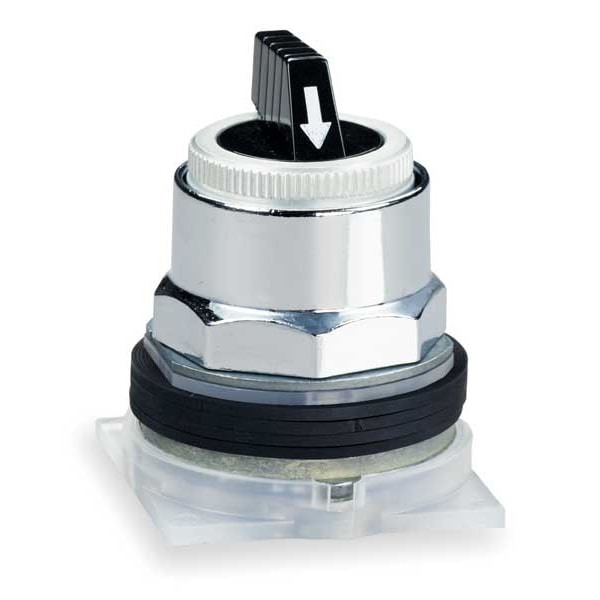

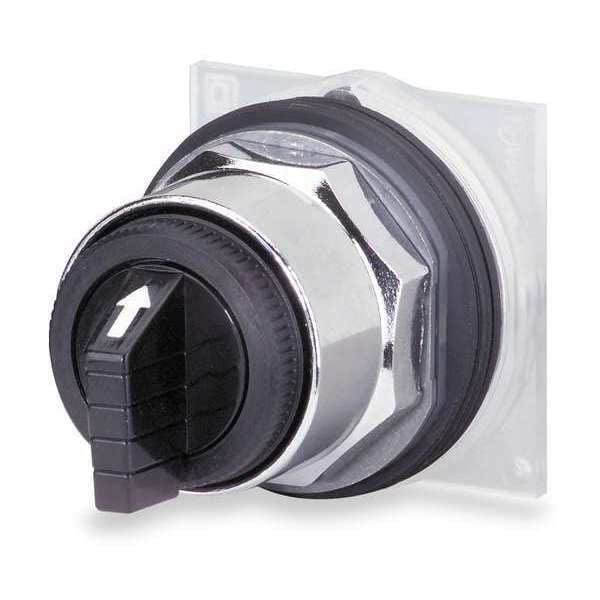

Interruptor selector no iluminado, 30mm, 3 posiciones, palanca
| Item | Long-Handled Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Metal |
| Type of Operator | Lever |
| Action | Maintained |
| Cam | E |
| Operator Head Material | Plastic |
| Operator Color | Black |
| Color | Black |
| NEMA Rating | 12, 13, 3, 3R, 4 |
| Position | 3 |
| Bezel Material | Metal |
| Bezel Color | Chrome |
| Key Removal | No Key |
| Switch Operation @ Position C | OOOO |
| Switch Operation @ Position A | XOXO |
| IP Rating | IP65 |
| Switch Operation @ Position D | No Fourth Position |
| Standards | CE, CSA LR24590 Class 3211 03, UL E78403 CCN NKCR |
| Switch Operation @ Position B | OXOX |
| Key Number | No Key |
| Series | 9001K |
| NEMA Enclosure Rating | 3, 4, 13, 12, 3R |
| Switch Function @ 1st Position | On |
| Switch Function @ 4th Position | No Fourth Position |
| Operator Illumination | Non-Illuminated |
| Panel Cutout Diameter | 30 mm |
| Key Removal Position | Not Applicable |
| Operator Head Color | Black |
| Operator Head Type | Long-Handled Knob |
| Switch Function @ 2nd Position | On |
| Includes Operator Key | Not Applicable |
| Switch Function @ 3rd Position | Off |
| Package Quantity | 1 |
