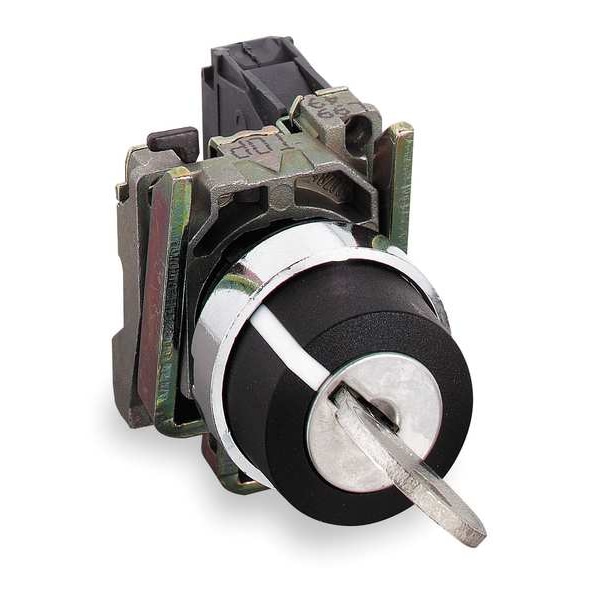

Interruptor selector no iluminado, con llave, B600/Q600.
| Item | Selector Switch |
|---|---|
| Size | 22 mm |
| Basic Material | Metal |
| Type of Operator | Keyed |
| Contact Form | 2 NO |
| Action | Maintained |
| Cam | No Cam Included |
| Operator Head Material | Metal |
| Color | Chrome |
| NEMA Rating | 1, 12, 13, 2, 3, 4 |
| Position | 3 |
| Bezel Material | Chrome Plated Metal |
| Key Removal | Center |
| Bezel Color | Chrome |
| Switch Operation @ Position D | No Fourth Position |
| IP Rating | IP69K, IP67, IP69, IP66 |
| Switch Operation @ Position A | XO |
| Standards | BV, CSA, DNV, GL, LROS, UL Listed |
| Switch Operation @ Position C | OX |
| Switch Operation @ Position B | OO |
| Includes | Key |
| Contact Rating | 10A @ 600V AC |
| NEMA Contact Rating Designation | Q600, B600 |
| Lamp Module Type | Not Applicable |
| Lamp Type | Not Applicable |
| Series | XB4 |
| Width | 30 mm |
| Height | 47 mm |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| AC Contact Rating | 1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V |
| Depth | 86 mm |
| Contacts Material | silver alloy |
| Operator Profile | key switch |
| Device Short Name | XB4 |
| Key Withdrawal Position | center |
| Head Type | Standard |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Device Presentation | complete product |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
| Shape Of Signaling Unit Head | round |
| Contacts Usage | standard contacts |
| Ambient Air Temperature For Storage | -40-70°C |
| Product Or Component Type | switch |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C |
| Ip Degree Of Protection | IP66 IEC 60529 || IP69 || IP69K || IP67 |
| Fixing Collar Material | zamak |
| Shape Of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Mounting Diameter | 22 mm |
| Electrical Reliability | λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
| Type Of Keylock | key 455 |
| Contact Operation | slow-break |
| Product Certifications | UL || BV || CSA || LROS || GL || DNV |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Ambient Air Temperature For Operation | -40-70°C |
| Torque Value | 0.14 N.m NO changing electrical state |
| Overvoltage Category | class I IEC 60536 |
| Positive Opening | without |
| Contacts Type And Composition | 2 NO |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Operator Position Information | 3 positions +/- 45° |
| Protective Treatment | TH |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 |
| Terminals Description Iso N°1 | NO || NO |
| Ik Degree Of Protection | IK06 with keyhole cover ZBGP conforming to IEC 50102 |
| [Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| Mechanical Durability | 1,000,000 cycle |
| Terminals Description Iso N°1 | NO || NO |
| Switch Function @ 2nd Position | Off |
| Overall Height | 1.85 in |
| Operator Head Color | Black |
| Manufacturer Warranty Length | 18 mo |
| Switch Function @ 4th Position | No Fourth Position |
| Panel Cutout Diameter | 22 mm |
| Hazardous Location Specification | Not Rated |
| Switch Function @ 3rd Position | On |
| Operator Illumination | Non-Illuminated |
| Includes Operator Key | Key Included |
| Contact Block Material | Metal |
| Overall Width | 1.18 in |
| Number of Positions | 3 |
| Operator Head Type | Keyed |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 4X, 2 |
| Key Removal Position | Center |
| Lamp Voltage - Maximum | Not Applicable |
| Switch Function @ 1st Position | On |
| Overall Depth | 3.39 in |
| Package Quantity | 1 |
