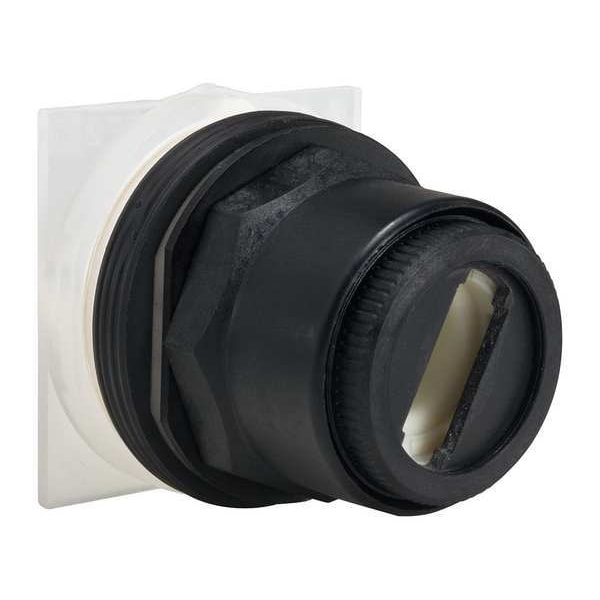

Interruptor de selección no iluminado, 30mm, 3 posiciones.
| Action | Maintained, Momentary |
|---|---|
| Size | 30 mm |
| Basic Material | Plastic |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Type of Operator | Operator Not Included |
| Cam | C |
| Operator Head Material | Not Applicable |
| Color | No Operator |
| Operator Color | No Operator |
| Position | 3 |
| Item | Selector Switch Head |
| Key Removal | No Key |
| Bezel Color | Black |
| Bezel Material | Plastic |
| IP Rating | IP66 |
| Switch Operation @ Position D | No Fourth Position |
| Switch Operation @ Position B | OOOO |
| Key Number | No Key |
| Switch Operation @ Position C | OXOX |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, UL 508 |
| Switch Operation @ Position A | XOXO |
| Series | 9001SK |
| Ambient Air Temperature For Storage | -40-70°C |
| Shape Of Signaling Unit Head | round |
| Device Presentation | basic element |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Mounting Diameter | 30 mm |
| Device Short Name | 9001SK |
| Mechanical Durability | 500,000 cycle |
| Protective Treatment | TC |
| Product Or Component Type | head for selector switch |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X || NEMA 6 |
| Contacts Type And Composition | without contact block |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Operator Position Information | 3 positions |
| Ambient Air Temperature For Operation | -25-70°C |
| Electrical Shock Protection Class | class II IEC 61140 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Product Certifications | UL 508 || NEMA |
| Key Removal Position | Not Applicable |
| Switch Function @ 1st Position | Not Applicable |
| Panel Cutout Diameter | 30 mm |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 4X, 2, 3R |
| Switch Function @ 3rd Position | Not Applicable |
| Number of Positions | 3 |
| Manufacturer Warranty Length | 18 mo |
| Operator Head Type | No Head Included |
| Includes Operator Key | Not Applicable |
| Operator Head Color | Not Applicable |
| Switch Function @ 2nd Position | Not Applicable |
| Hazardous Location Specification | Not Rated |
| Switch Function @ 4th Position | No Fourth Position |
| Operator Illumination | Non-Illuminated |
| Package Quantity | 1 |
