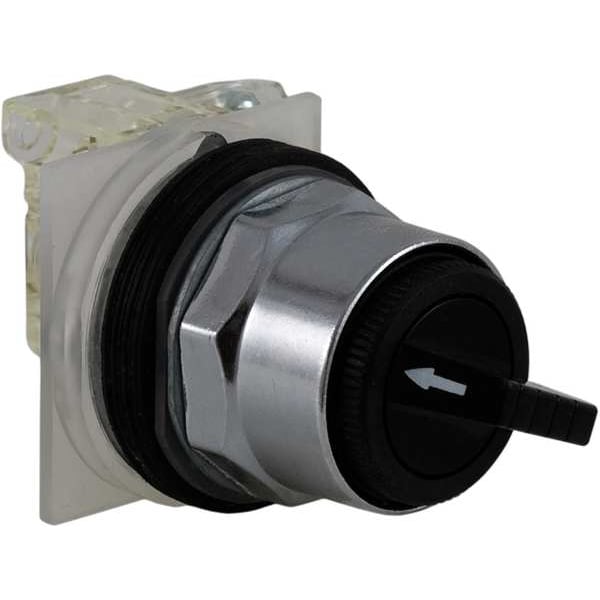

Interruptor selectivo sin iluminación, 30mm, 3 posiciones, palanca en forma de E.
| Item | Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Metal |
| Type of Operator | Lever |
| Contact Form | SPDT |
| Action | Maintained |
| Cam | B |
| Operator Head Material | Polycarbonate |
| Color | Black |
| NEMA Rating | 12, 13, 3, 3R, 4 |
| Position | 3 |
| Bezel Material | Metal |
| Key Removal | No Key |
| Bezel Color | Black |
| Contact Rating | 10A @ 600V AC |
| NEMA Contact Rating Designation | A600, Q600 |
| Switch Operation @ Position C | OX |
| Standards | CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR |
| Switch Operation @ Position D | No Fourth Position |
| IP Rating | IP65 |
| Switch Operation @ Position B | XO |
| Switch Operation @ Position A | XO |
| Lamp Module Type | Not Applicable |
| Lamp Type | Not Applicable |
| AC Contact Rating | 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @125 V |
| Series | 9001K |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Operator Profile | black standard knob, standard handle |
| Cam Profile | 2 |
| Product Or Component Type | switch |
| Contacts Type And Composition | O, 1 C |
| Device Presentation | complete product |
| Product Certifications | CSA LR24590 class 3211 03 || CE || UL listed file E42259 CCN NKCR |
| Device Short Name | K |
| Operator Position Information | 3 positions |
| Connections - Terminals | screw-clamp terminals, 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1 |
| Cap/Operator Or Lens Colour | black |
| Mounting Diameter | 30 mm |
| Switch Function @ 2nd Position | Off |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 2, 3R |
| Manufacturer Warranty Length | 18 mo |
| Includes Operator Key | Not Applicable |
| Switch Function @ 1st Position | On |
| Key Removal Position | Not Applicable |
| Switch Function @ 4th Position | No Fourth Position |
| Contact Block Material | Metal |
| Panel Cutout Diameter | 30 mm |
| Operator Illumination | Non-Illuminated |
| Lamp Voltage - Maximum | Not Applicable |
| Switch Function @ 3rd Position | On |
| Metal Operator Head Finish | Not Applicable |
| Operator Head Type | Short-Handled Knob |
| Number of Positions | 3 |
| Operator Head Color | Black |
| Hazardous Location Specification | Not Rated |
| Package Quantity | 1 |
