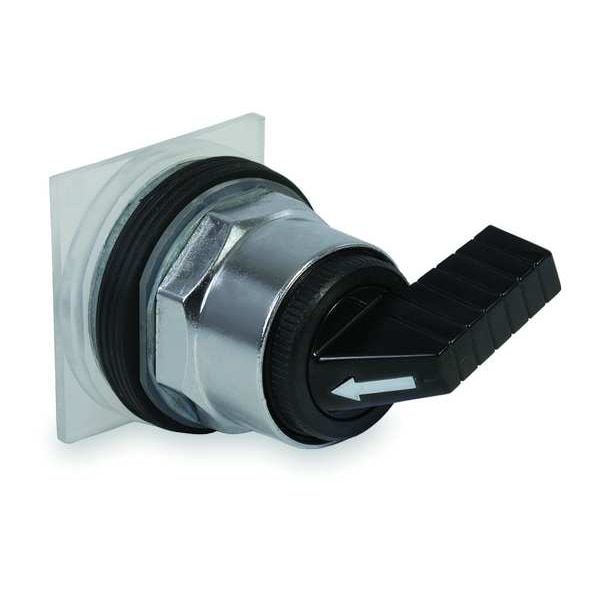

Interruptor selector no iluminado, 30mm, 3 posiciones, palanca en L.
| Item | Long-Handled Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Metal |
| Type of Operator | Extended Lever |
| Action | Maintained |
| Cam | B |
| Operator Head Material | Plastic |
| Operator Color | Black |
| Color | Black |
| NEMA Rating | 12, 13, 3, 3R, 4 |
| Position | 3 |
| Bezel Material | Metal |
| Key Removal | No Key |
| Bezel Color | Chrome |
| Switch Operation @ Position D | No Fourth Position |
| Standards | CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR |
| Key Number | No Key |
| IP Rating | IP65 |
| Switch Operation @ Position B | OXOX |
| Switch Operation @ Position C | OXXO |
| Switch Operation @ Position A | XOOX |
| Series | 9001K |
| Product Or Component Type | head for selector switch |
| Device Short Name | K |
| Mounting Diameter | 30 mm |
| Contacts Type And Composition | without contact block |
| Operator Profile | long handle, 1 projecting push-button |
| Enclosure Type | dust and oil resistant weatherproof enclosure indoor/outdoor |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Cap/Operator Or Lens Colour | black |
| Operator Position Information | 3 positions |
| Product Certifications | CE || CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR |
| Switch Function @ 4th Position | No Fourth Position |
| Operator Head Color | Black |
| Operator Illumination | Non-Illuminated |
| Number of Positions | 3 |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 2, 3R |
| Operator Head Type | Long-Handled Knob |
| Switch Function @ 1st Position | Not Applicable |
| Switch Function @ 3rd Position | Not Applicable |
| Switch Function @ 2nd Position | Not Applicable |
| Key Removal Position | Not Applicable |
| Panel Cutout Diameter | 30 mm |
| Manufacturer Warranty Length | 18 mo |
| Includes Operator Key | Not Applicable |
| Hazardous Location Specification | Not Rated |
| Package Quantity | 1 |
