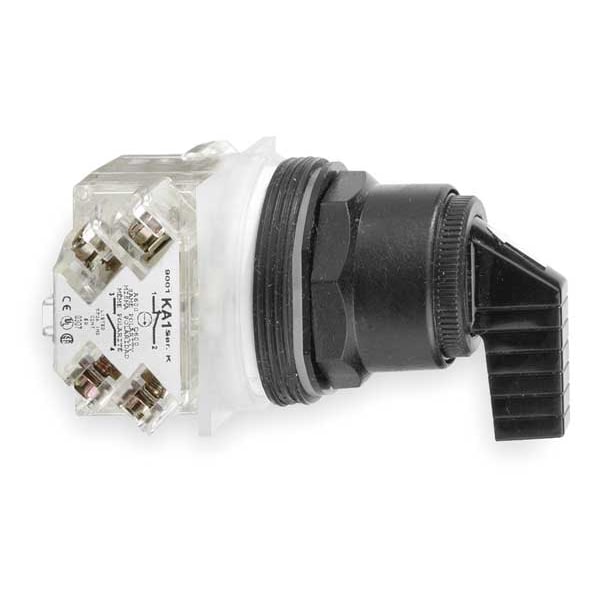

Interruptor selectivo no iluminado, 30mm, 3 posiciones, palanca E.
| Item | Long-Handled Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Plastic |
| Type of Operator | Extended Lever |
| Action | Maintained, Momentary |
| Cam | C |
| Operator Head Material | Plastic |
| Operator Color | Black |
| Color | Black |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Bezel Material | Plastic |
| Position | 3 |
| Key Removal | No Key |
| Bezel Color | Black |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, UL 508 |
| Switch Operation @ Position B | OOOO |
| Switch Operation @ Position A | XOXO |
| Switch Operation @ Position C | OXOX |
| IP Rating | IP66 |
| Switch Operation @ Position D | No Fourth Position |
| Key Number | No Key |
| Series | 9001SK |
| Device Presentation | basic element |
| Electrical Shock Protection Class | class II IEC 61140 |
| Shape Of Signaling Unit Head | octagonal |
| Product Or Component Type | head for selector switch |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X || NEMA 6 |
| Mounting Diameter | 30 mm |
| Device Short Name | 9001SK |
| Contacts Type And Composition | without contact block |
| Protective Treatment | TC |
| Product Compatibility | 9001KA1 side 1 or 2 |
| Mechanical Durability | 500,000 cycle |
| Operator Position Information | 3 positions |
| Ambient Air Temperature For Storage | -40-70°C |
| Product Certifications | UL 508 || NEMA |
| Operator Profile | black long handle |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -25-70°C |
| Key Removal Position | Not Applicable |
| Switch Function @ 3rd Position | Not Applicable |
| Switch Function @ 2nd Position | Not Applicable |
| Operator Head Type | Long-Handled Knob |
| Switch Function @ 4th Position | No Fourth Position |
| Operator Illumination | Non-Illuminated |
| Number of Positions | 3 |
| Switch Function @ 1st Position | Not Applicable |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 4X, 2, 3R |
| Operator Head Color | Black |
| Hazardous Location Specification | Not Rated |
| Includes Operator Key | Not Applicable |
| Panel Cutout Diameter | 30 mm |
| Manufacturer Warranty Length | 18 mo |
| Package Quantity | 1 |
