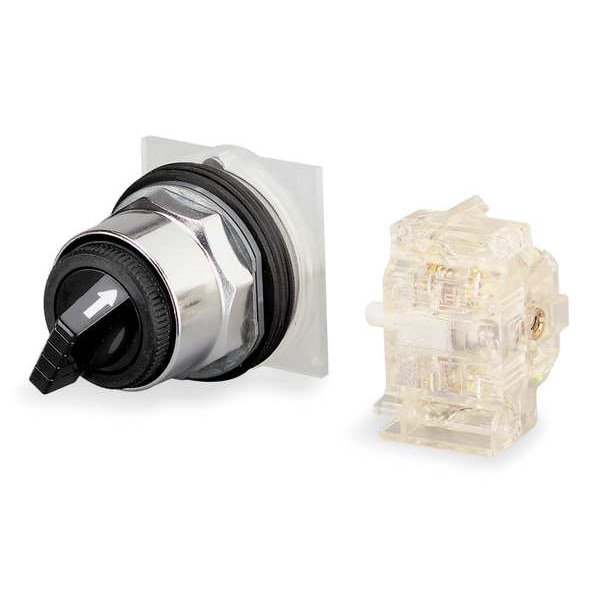

Interruptor selecto de no iluminación, 30mm, 3 posiciones, palanca.
| Item | Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Metal |
| Type of Operator | Lever |
| Action | Maintained |
| Contact Form | 1NO/1NC |
| Cam | 4 |
| Operator Head Material | Metal |
| Color | Black |
| NEMA Rating | 4, 13 |
| Position | 3 |
| Bezel Material | Metal |
| Key Removal | No Key |
| Bezel Color | Black |
| NEMA Contact Rating Designation | Not Rated |
| Contact Rating | 10A @ 600V AC |
| Switch Operation @ Position D | No Fourth Position |
| Standards | CE, CSA C22.2 No.14, CSA LR24590 Class 3211 03, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, UL 508, UL E42259 CCN NKCR |
| IP Rating | IP20 |
| Switch Operation @ Position C | OX |
| Switch Operation @ Position A | OO |
| Switch Operation @ Position B | XO |
| Lamp Type | Not Applicable |
| Lamp Module Type | Not Applicable |
| DC Contact Rating | 0.55 A @ 125 V |
| AC Contact Rating | 10 A @ 600 V, 3 A @ 240 V |
| Series | 9001K |
| Key Removal Position | Not Applicable |
| Switch Function @ 4th Position | No Fourth Position |
| Operator Head Color | Black |
| Contact Block Material | Metal |
| Overall Depth | 1.12 in, 2.18 in |
| Switch Function @ 1st Position | Off |
| Switch Function @ 3rd Position | On |
| Operator Illumination | Non-Illuminated |
| Switch Function @ 2nd Position | On |
| Panel Cutout Diameter | 30 mm |
| Includes Operator Key | Not Applicable |
| Lamp Voltage - Maximum | Not Applicable |
| Overall Height | 1.59 in, 1.74 in |
| Overall Width | 0.97 in, 1.69 in |
| Number of Positions | 3 |
| Manufacturer Warranty Length | 18 mo |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 2, 3R, 6 |
| Operator Head Type | Short-Handled Knob |
| Hazardous Location Specification | Not Rated |
| Package Quantity | 1 |
