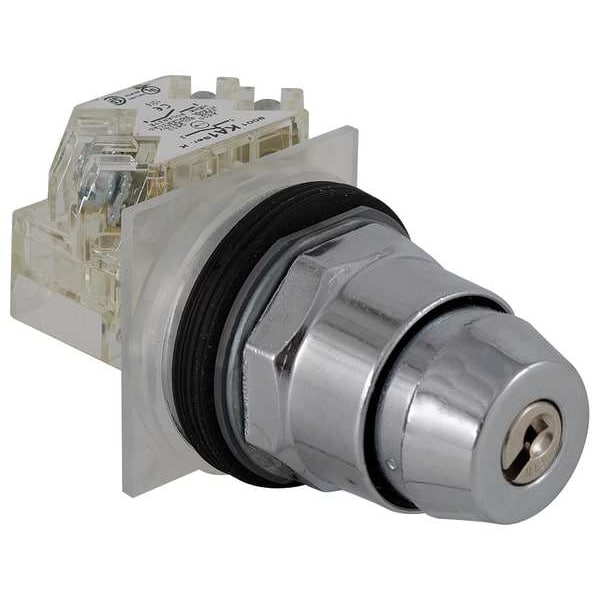

Interruptor selectivo no luminoso, conmutador C, mantenimiento
| Item | Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Metal |
| Type of Operator | Keyed |
| Contact Form | SPDT |
| Action | Maintained |
| Operator Head Material | Brass |
| Cam | C |
| Color | Chrome |
| NEMA Rating | 12, 13, 3, 3R, 4 |
| Bezel Material | Metal |
| Position | 3 |
| Bezel Color | Chrome |
| Key Removal | Any Position |
| Switch Operation @ Position A | OX |
| Contact Rating | 10A @ 600V AC |
| Switch Operation @ Position B | OO |
| Switch Operation @ Position D | No Fourth Position |
| Standards | CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR |
| NEMA Contact Rating Designation | A600, Q600 |
| Includes | Key |
| Switch Operation @ Position C | XO |
| IP Rating | IP66 |
| Lamp Module Type | Not Applicable |
| Key Number | E10 |
| Lamp Type | Not Applicable |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @125 V |
| AC Contact Rating | 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| Series | 9001K |
| Connections - Terminals | screw-clamp terminals, 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1 |
| Device Short Name | K |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Operator Position Information | 3 positions |
| Operator Profile | black key operated knob, key switch |
| Product Certifications | CE || UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03 |
| Device Presentation | complete product |
| Mounting Diameter | 30 mm |
| Product Or Component Type | switch |
| Contacts Type And Composition | O, 1 C |
| Cam Profile | 3 |
| Key Withdrawal Position | left |
| Lamp Voltage - Maximum | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Switch Function @ 3rd Position | On |
| Switch Function @ 4th Position | No Fourth Position |
| Contact Block Material | Metal |
| Operator Head Color | Black |
| Number of Positions | 3 |
| Key Removal Position | Any Position |
| Operator Head Type | Keyed |
| Panel Cutout Diameter | 30 mm |
| Switch Function @ 2nd Position | Off |
| Switch Function @ 1st Position | On |
| Operator Illumination | Non-Illuminated |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 2, 3R |
| Includes Operator Key | Key Included |
| Hazardous Location Specification | Not Rated |
| Package Quantity | 1 |
