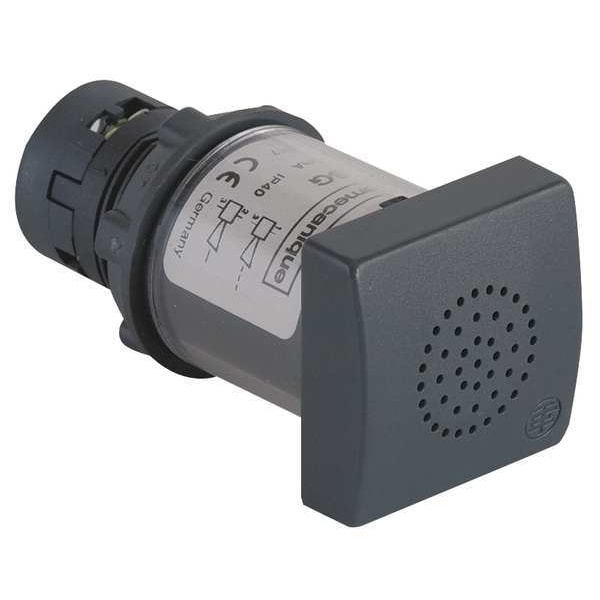

Anunciador no iluminado, 22 mm, negro.
| Action | Not Applicable |
|---|---|
| Size | 22 mm |
| Head Material | Plastic |
| NEMA Rating | 1 |
| Type of Operator | Annunciator |
| Lamp Type | Not Applicable |
| Color | Black |
| Legend | Not Applicable |
| Number of Operators | 1 |
| Item | Annunciator |
| Bezel Material | Plastic |
| Features | Visually Distinct at a Distance |
| Standards | Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, EN 50102, EN 60947-1, EN 60947-5-1, EN 60947-5-4, IEC 50102, IEC 60529, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, REACH Free of SVHC, RoHS, UL 508 |
| Basic Material | Plastic |
| IP Rating | IP40 |
| Terminal Connection | Screw Clamp |
| Width | 29 mm |
| Lamp Module Type | Not Applicable |
| Height | 29 mm |
| Series | XB5/ZB5 |
| Depth | 55 mm |
| Product Type | Annunciator |
| Product Or Component Type | annunciator |
| Mounting Diameter | 22 mm |
| Ik Degree Of Protection | IK05 || IK03 |
| Current Consumption | <= 20 mA |
| Cap/Operator Or Lens Colour | black |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Noise Level | 90 dB 6.8 kHz 0.1 m +/- 10 % |
| Supply Circuit Type | AC/DC |
| Electrical Shock Protection Class | class II IEC 60536 |
| Ambient Air Temperature For Storage | -40-70°C |
| Ip Degree Of Protection | IP20 || IP66 || IP67 || IP69 || IP69K |
| Resistance To High Pressure Washer | 9000000 Pa 80°C 0.1 m |
| [Us] Rated Supply Voltage | 120 V +/- 10 % |
| Ambient Air Temperature For Operation | -40-70°C |
| Head Type | Standard |
| Signalling Type | continuous or intermittent tone |
| Protective Treatment | TH |
| Supply Frequency | 50/60 Hz |
| Overvoltage Category | class II IEC 60536 |
| Product Certifications | UL Listed || CSA || BV |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2 |
| Manufacturer Warranty Length | 18 mo |
| Resistance Properties | Chemical Resistant |
| Overall Depth | 2.17 in |
| Hazardous Location Specification | Not Rated |
| Panel Cutout Diameter | 22 mm |
| Legend Background Color | Not Applicable |
| Overall Height | 1.14 in |
| Operator Material | Plastic |
| Overall Width | 1.14 in |
| Operating Temperature - Maximum | 158 deg F |
| Number of Indicator Lights | 0 |
| Operator Illumination | Non-Illuminated |
| Legend Color | Not Applicable |
| Head Color | Black |
| Maintained Action Release | Not Applicable |
| Lamp Voltage - Maximum | Not Applicable |
| Mushroom Head Diameter | Not Applicable |
| Operating Temperature - Minimum | -40 deg F |
| Package Quantity | 1 |
