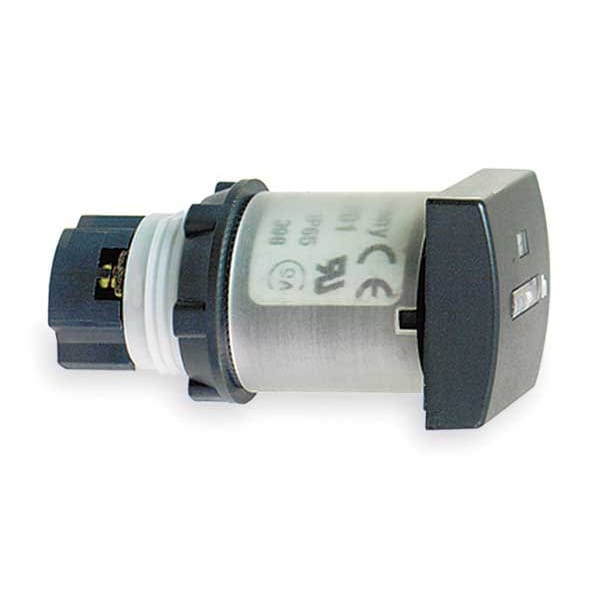

Contador de horas no iluminado, 22 mm, negro.
| Action | Not Applicable |
|---|---|
| Size | 22 mm |
| Head Material | Plastic |
| NEMA Rating | 13, 4X |
| Type of Operator | Hour Counter |
| Lamp Type | Not Applicable |
| Color | Black |
| Legend | Not Applicable |
| Number of Operators | 1 |
| Item | Hour Counter |
| Bezel Material | Plastic |
| Features | Visually Distinct at a Distance |
| Standards | CE, EN 60947-5-1, IEC 60529, REACH Free of SVHC, RoHS, UL Listed |
| Basic Material | Plastic |
| IP Rating | IP66 |
| Terminal Connection | Screw Clamp |
| Depth | 60 mm |
| Width | 30 mm |
| Lamp Module Type | Not Applicable |
| Height | 30 mm |
| Series | XB5/ZB5 |
| Current Consumption | 7 to 15 mA |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Mounting Support | panel mounting |
| Product Or Component Type | hour counter |
| Protective Treatment | TH |
| Display Digits | 5 |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Product Certifications | CE || UL |
| Mounting Diameter | 22 mm |
| Ambient Air Temperature For Storage | -40-70°C |
| [Us] Rated Supply Voltage | 12 to 24 V +/- 10 % |
| Device Presentation | product |
| Reset | without |
| Mounting Mode | flush-mounted |
| Ambient Air Temperature For Operation | -25-70°C |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Electrical Shock Protection Class | class II IEC 60536 |
| Overall Height | 1.18 in |
| Number of Indicator Lights | 0 |
| Operating Temperature - Minimum | -13 deg F |
| Maintained Action Release | Not Applicable |
| Head Color | Black |
| Overall Depth | 2.36 in |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Lamp Voltage - Maximum | Not Applicable |
| Mushroom Head Diameter | Not Applicable |
| Legend Background Color | Not Applicable |
| Operator Material | Plastic |
| Operating Temperature - Maximum | 158 deg F |
| Hazardous Location Specification | Not Rated |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2 |
| Legend Color | Not Applicable |
| Panel Cutout Diameter | 22 mm |
| Operator Illumination | Non-Illuminated |
| Manufacturer Warranty Length | 18 mo |
| Overall Width | 1.18 in |
| Package Quantity | 1 |
