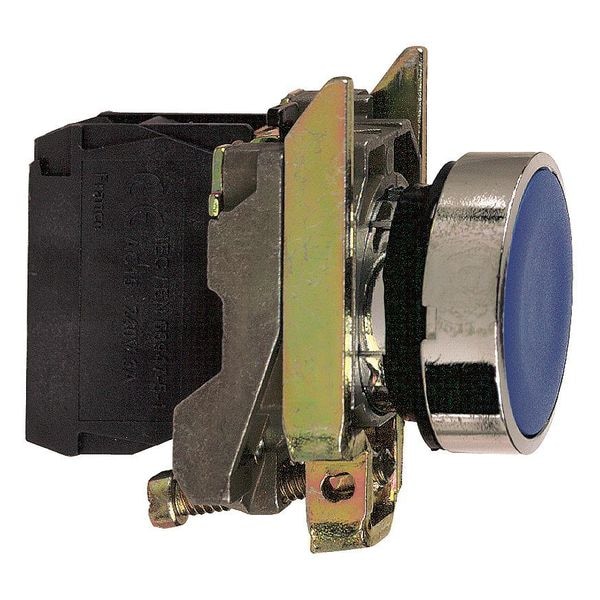

Botón pulsador no iluminado, 22 mm, 1 contacto normalmente abierto, azul.
| Action | Momentary |
|---|---|
| Size | 22 mm |
| Head Material | Metal |
| NEMA Rating | 13, 4, 4X |
| Type of Operator | Flush Button |
| Lamp Type | Not Applicable |
| Contact Form | 1NO |
| Color | Blue |
| Bezel | Metal |
| Legend | Not Applicable |
| Number of Operators | 1 |
| Item | Flush Push Button Operator |
| Contact Rating | 10A @ 600V AC |
| Bezel Material | Chrome |
| Standards | Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE |
| IP Rating | IP66, IP67, IP69, IP69K |
| Terminal Connection | Screw Clamp |
| Basic Material | Metal |
| Material | metal |
| NEMA Contact Rating Designation | A600, Q600 |
| Series | XB4 |
| Depth | 52 mm |
| Width | 30 mm |
| Height | 47 mm |
| Lamp Module Type | Not Applicable |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| AC Contact Rating | 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| Product Type | Push Button Operators |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Shape Of Signaling Unit Head | round |
| Head Type | Standard |
| Ambient Air Temperature For Storage | -40-70°C |
| Ik Degree Of Protection | IK06 IEC 50102 |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1 |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Product Certifications | UL Listed || BV || LROS (Lloyds register of shipping) || CSA || DNV || GL |
| Mounting Diameter | 22 mm |
| Ambient Air Temperature For Operation | -40-70°C |
| Shape Of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Operating Travel | 2.6 mm NO changing electrical state) || 4.3 mm total travel) |
| Device Short Name | XB4 |
| Contacts Material | silver alloy |
| Positive Opening | without |
| Mechanical Durability | 10,000,000 cycle |
| Protective Treatment | TH |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Terminals Description Iso N°1 | NO |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Operator Profile | blue flush, unmarked |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 600 V 3)EN/IEC 60947-1 |
| Contact Operation | slow-break |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Electrical Reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
| Product Or Component Type | push-button |
| Contacts Type And Composition | 1 NO |
| Operating Force | 3.8 N NO changing electrical state |
| Overvoltage Category | class I IEC 60536 |
| Device Presentation | product |
| Contacts Usage | contacts |
| Fixing Collar Material | zamak |
| Terminals Description Iso N°1 | NO |
| Operating Temperature - Maximum | 158 deg F |
| Operator Illumination | Non-Illuminated |
| Hazardous Location Specification | Not Applicable |
| Operating Temperature - Minimum | -40 deg F |
| Operator Material | Metal |
| Overall Depth | 2.05 in |
| Lamp Voltage - Maximum | Not Applicable |
| Legend Color | Not Applicable |
| Legend Background Color | Not Applicable |
| Maintained Action Release | Not Applicable |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Push Button Style | Flush |
| Panel Cutout Diameter | 22 mm |
| Overall Height | 1.85 in |
| Operator Voltage Rating - Maximum | 600 V AC/DC |
| Overall Width | 1.18 in |
| Mechanical Operating Durability | 1.00 x 10^7 |
| Number of Indicator Lights | 0 |
| Head Color | Blue |
| Manufacturer Warranty Length | 18 mo |
| NEMA Enclosure Rating | 13, 4X |
| Mushroom Head Diameter | Not Applicable |
| Package Quantity | 1 |
