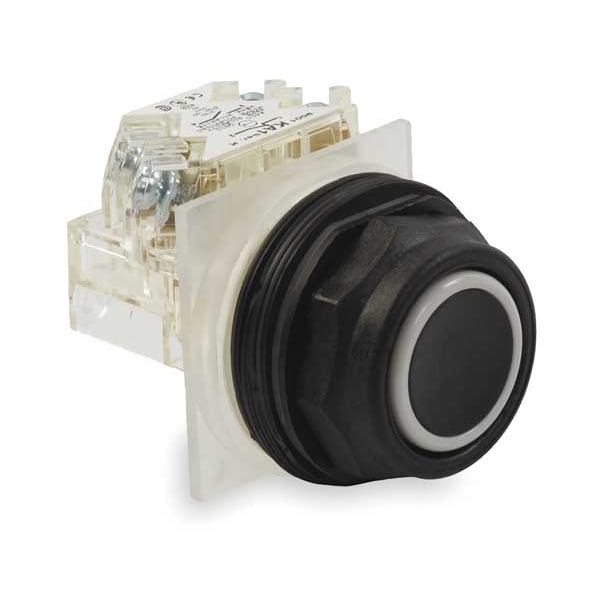

Botón pulsador no iluminado, de 30 mm, 1 contacto normalmente cerrado (NC), color negro.
| Action | Momentary |
|---|---|
| Size | 30 mm |
| Head Material | Plastic |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 4X, 6 |
| Type of Operator | Flush Button |
| Lamp Type | Not Applicable |
| Contact Form | 1NC |
| Color | Black |
| Bezel | Corrosion Resistant Thermoplastic |
| Legend | Not Applicable |
| Number of Operators | 1 |
| Item | Flush Push Button Operator |
| Contact Rating | 10A @ 600V AC |
| Bezel Material | Plastic |
| Basic Material | Plastic |
| IP Rating | IP66 |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE |
| NEMA Contact Rating Designation | A600, Q600 |
| Terminal Connection | Screw Clamp |
| Material | Plastic |
| Lamp Module Type | Not Applicable |
| AC Contact Rating | 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| Series | 9001SK |
| Product Type | Push Button Operators |
| Device Short Name | 9001SK |
| Mounting Diameter | 30 mm |
| Operator Additional Information | plastic guard |
| Operator Profile | black flush, flush |
| Device Presentation | product |
| Mechanical Durability | 5,000,000 cycle |
| Contacts Type And Composition | 1 NC |
| Product Or Component Type | push-button |
| Ip Degree Of Protection | IP66 |
| Contact Operation | standard |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Cap/Operator Or Lens Colour | black |
| Operator Illumination | Non-Illuminated |
| Manufacturer Warranty Length | 18 mo |
| Push Button Style | Flush |
| Resistance Properties | Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Lamp Voltage - Maximum | Not Applicable |
| Maintained Action Release | Not Applicable |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2 |
| Operator Voltage Rating - Maximum | 600 V AC |
| Operator Material | Plastic |
| Legend Background Color | Not Applicable |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2, 6 |
| Mushroom Head Diameter | Not Applicable |
| Operating Temperature - Maximum | 140 deg F |
| Head Color | Black |
| Mechanical Operating Durability | 5.00 x 10^6 |
| Number of Indicator Lights | 0 |
| Legend Color | Not Applicable |
| Operating Temperature - Minimum | -22 deg F |
| Panel Cutout Diameter | 30 mm |
| Package Quantity | 1 |
