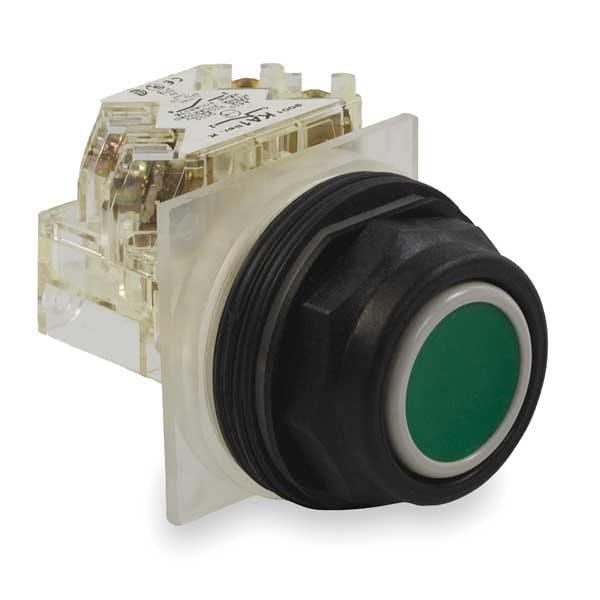

Botón pulsador no iluminado, 30 mm, 1 contacto normalmente cerrado (NC), verde.
| Action | Momentary Push |
|---|---|
| Size | 30 mm |
| Head Material | Plastic |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 4X, 6 |
| Type of Operator | Flush Button |
| Contact Form | 1NC |
| Color | Green |
| Bezel | Corrosion Resistant Thermoplastic |
| Legend | Not Applicable |
| Number of Operators | 1 |
| Contact Rating | 10A @ 600V AC |
| Item | Flush Push Button Operator |
| Bezel Material | Thermoplastic |
| NEMA Contact Rating Designation | A600, Q600 |
| Standards | CE, CSA, UL Listed |
| Terminal Connection | Pressure Plate |
| Material | Plastic |
| IP Rating | IP66 |
| Basic Material | Plastic |
| Product Type | Push Button Operators |
| Operator Profile | Green flush |
| Mechanical Durability | 5,000,000 cycle |
| Contact Type and Composition | 1 NC |
| IP Degree Of Protection | IP66 |
| Contact Operation | standard |
| Mounting Diameter | 1.18 in |
| Product Or Component Type | push-button |
| NEMA Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Device Presentation | product |
| Head Color | Green |
| Operator Material | Plastic |
| Panel Cutout Diameter | 30 mm |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2, 6 |
| Resistance Properties | Corrosion Resistant |
| Push Button Style | Flush |
| Package Quantity | 1 |
