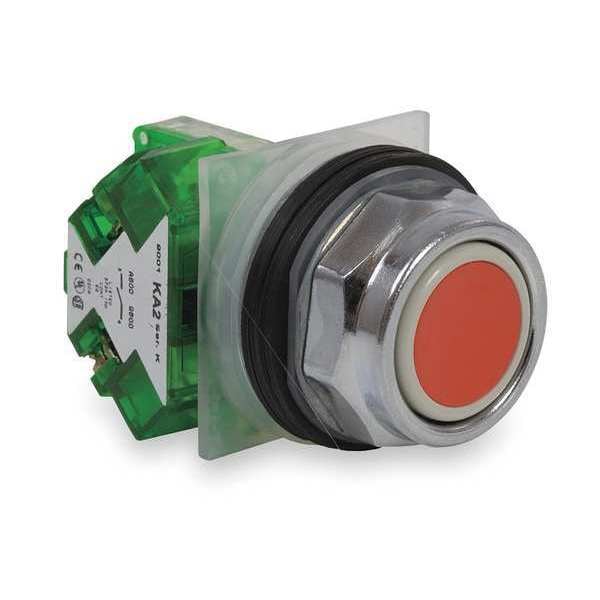

Botón pulsador sin iluminación, 30 mm, 1 circuito normalmente abierto, color rojo.
| Action | Momentary |
|---|---|
| Size | 30 mm |
| Head Material | Metal |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 6 |
| Type of Operator | Flush Button |
| Lamp Type | Not Applicable |
| Contact Form | 1NO |
| Color | Red |
| Bezel | Die Cast Aluminum |
| Legend | Not Applicable |
| Number of Operators | 1 |
| Item | Flush Push Button Operator |
| Contact Rating | 10A @ 600V AC |
| Bezel Material | Metal |
| Material | metal |
| Standards | CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE |
| Basic Material | Metal |
| Terminal Connection | Screw Clamp |
| NEMA Contact Rating Designation | A600, Q600 |
| IP Rating | IP66 |
| Lamp Module Type | Not Applicable |
| AC Contact Rating | 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| Series | 9001K |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| Product Type | Push Button Operators |
| Operating Position | any position |
| Device Short Name | K |
| Product Certifications | NEMA || CSA LR 25490 class 3211 03 || CE || UL listed file E42259 CCN NKCR |
| Cap/Operator Or Lens Colour | red |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Device Presentation | product |
| [Ie] Rated Operational Current | 10 A, AC-15 || 10 A, DC-13 |
| Product Or Component Type | push-button |
| Operator Profile | red flush, flush |
| Light Block Supply | without supply |
| Operator Additional Information | metal guard |
| Mounting Diameter | 30 mm |
| Connections - Terminals | screw clamp terminals |
| Light Source | without |
| Contact Operation | standard |
| Contacts Type And Composition | 1 NO |
| Lamp Voltage - Maximum | Not Applicable |
| Operator Material | Metal |
| Panel Cutout Diameter | 30 mm |
| Push Button Style | Flush |
| Resistance Properties | Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Operator Voltage Rating - Maximum | 600 V AC |
| Mushroom Head Diameter | Not Applicable |
| Legend Background Color | Not Applicable |
| Operator Illumination | Non-Illuminated |
| Legend Color | Not Applicable |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2 |
| Maintained Action Release | Not Applicable |
| Number of Indicator Lights | 0 |
| Operating Temperature - Minimum | -22 deg F |
| NEMA Enclosure Rating | 4, 12, 13, 3, 1, 3R, 2, 6 |
| Manufacturer Warranty Length | 18 mo |
| Operating Temperature - Maximum | 140 deg F |
| Head Color | Red |
| Package Quantity | 1 |
