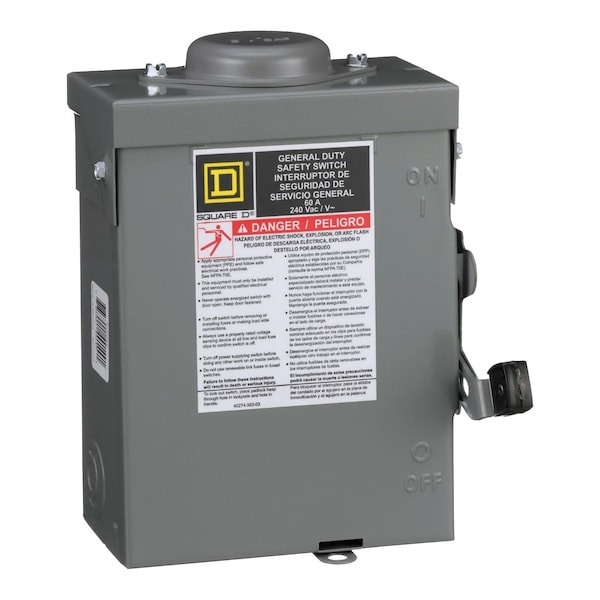

Interruptor de seguridad de un solo polo no fusible, tipo de servicio general, 240V CA, 60 A
| Item | Single Throw Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 3 |
| HP | 10 HP |
| NEMA Enclosure Type | 3R |
| Number of Poles | 2 |
| Amps AC | 60 A |
| Depth | 3-3/4 in |
| Height | 9.63 in |
| Width | 7-3/4 in |
| Standards | UL Listed |
| Weight | 1.8 kg |
| Mounting | Surface |
| Gauge/Conductor | 12 to 3 AWG (Aluminum), 14 to 3 AWG (Copper) |
| Features | Mercury Free, PVC Free, Toxic Heavy Metal Free |
| Electrical Connection | Lugs |
| Number Of Wires | 2 |
| Device Composition | none |
| [Ue] Rated Operational Voltage | 240 V AC |
| Series Name | general duty |
| Pvc Free | Yes |
| Device Application | Residential |
| Wiring Configuration | 2 wires |
| Disconnector Device Type | disconnect switch |
| Awg Gauge | AWG 12...AWG 3 aluminium, AWG 14...AWG 3 copper |
| Motor Power Hp | 10 hp at 240 V AC 60 Hz for 1 phase motors |
| Nema Degree of Protection | NEMA 3R |
| Tightening Torque | 35-35 lbf.in 2.08-5.26 mm² (AWG 14...AWG 10), 45-45 lbf.in 8.37-8.37 mm² (AWG 8), 45-45 lbf.in 12.3-21.12 mm² (AWG 6...AWG 4), 50-50 lbf.in 26.67-26.67 mm² (AWG 3) |
| Package Quantity | 1 |
