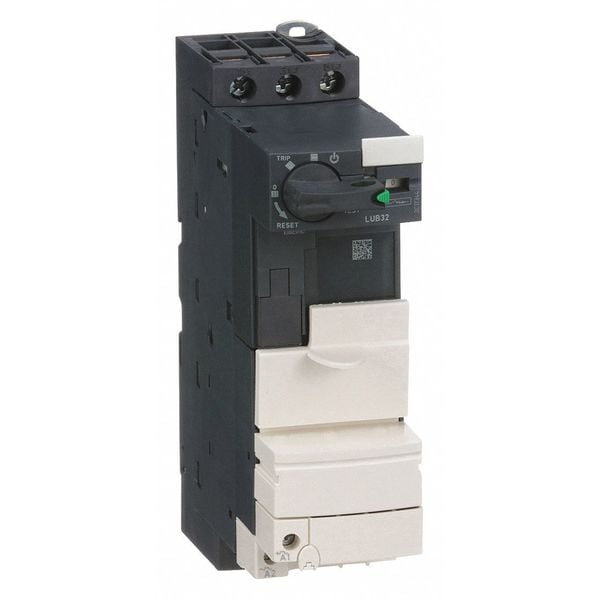

Arrancador de base de potencia no reversible, de 120 a 600V CA, 3 polos, 1NC/1NO.
| Item | Starter Power Base |
|---|---|
| Overload Relay Amp Setting | Up to 32A |
| Coil Volts | 120 to 600V AC |
| Auxiliary Contact Form | 1NO, 1NC |
| HP @ 3 Phase - 240V | 10 HP |
| Starter Type | IEC Style |
| Action | Nonreversing |
| Amps AC | 32 A |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 20 HP |
| HP @ 1 Phase - 120V | 2 hp |
| Width | 1.77 in |
| Height | 6.06 in |
| Standards | ASEFA, ATEX Compliant, CCC, CE, CSA, EAC, UL Listed |
| HP @ 3 Phase - 575V | 25 hp |
| HP @ 3 Phase - 208V | 10 HP |
| Depth | 5 in |
| HP @ 1 Phase - 240V | 5 HP |
| Enclosure Type | Open |
| Hz | 50/60 |
| HP @ 1 Phase - 230V | 5 |
| Features | Free of Mercury & Pvc; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration; Suitability For Isolation |
| Weight | 0.9 kg |
| Operating Voltage | 690V AC |
| Compatible with Series | TeSys Ultra |
| Overall Depth | 4.96 in |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Coil Voltage | 24-240V AC, 24-220V DC |
| NEMA Enclosure Rating | No Enclosure |
| Maximum Voltage Rating | 690 V AC |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Horsepower @ Three Phase - 600V AC | 25 HP |
| Starter Style | IEC |
| Maximum Overload Relay Current Setting | 32 A |
| Reversing Capability | Non-Reversing |
| Horsepower @ Three Phase - 480V AC | 20 HP |
| Overall Height | 6.06 in |
| Overall Width | 1.77 in |
| Package Quantity | 1 |
