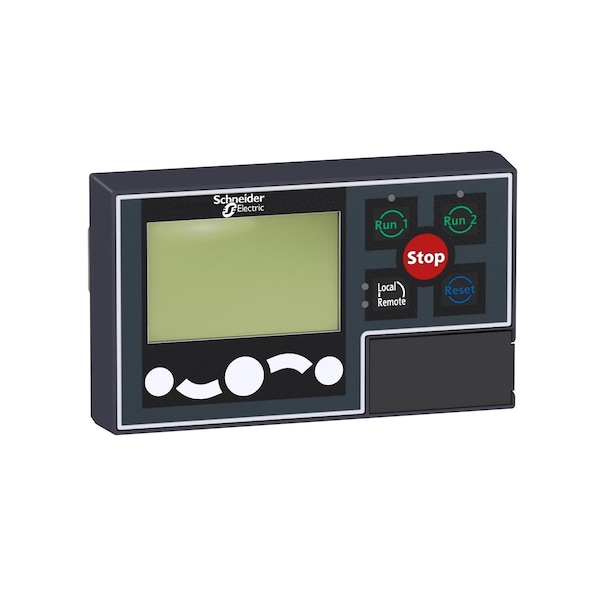

Unidad de control del operador, TeSys Tera, 140 mA, conexión RJ45, empotrado a ras, LCD retroiluminado.
| Item | Tesys T Display Module |
|---|---|
| Depth | 50 mm |
| Standards | UL 60947-4-1A, CSA C22.2 No 60947-4-1, EN/IEC 61131-2 |
| Height | 70 mm |
| Width | 117 mm |
| Product or Component Type | operator control unit |
| Electromagnetic Compatibility | electrostatic discharge, level 3, 8 kV air, 4 kV contact, conforming to EN/IEC 61000-4-2, radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, conducted RF disturbances, level 3, 10 V, conforming to EN/IEC 61000-4-6, surges (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-5, fast transient bursts (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-4 |
| Pvc Free | Yes |
| Ambient Air Temperature For Operation | -20-60°C |
| Relative Humidity | 15-95 % |
| Protective Treatment | TC 12 humidity cycles 55°C EN/IEC 60068-2-30 |
| Mechanical Robustness | shocks15 Gn for 11 ms EN/IEC 60068-2-27, vibrations4 Gn, 5...300 Hz EN/IEC 60068-2-6 |
| Display Type | Backlit LCD |
| Maximum Supply Current | 140 mA |
| Device Connection | connection to a LTM R controller, RJ45 rear, connection to a PC, RJ45 front |
| Control Button Type | 10 push-button |
| Local Signalling | 4 LEDs |
| Flame Retardance | V2 conforming to UL 94 |
| Fire Resistance | 650°C EN, IEC 60947-1 |
| Power Dissipation | 1 W |
| Range | TeSys |
| Device Short Name | LTMCU |
| Mounting Mode | flush-mounted |
| Ip Degree of Protection | IP54 EN/IEC 60947-4-1 front || IP20 EN/IEC 60947-4-1 rear |
| Ambient Air Temperature For Storage | -40-80°C |
| Supply | via the controller |
| Range Compatibility | TeSys T LTMR motor controller |
| Product Certifications | C-tick || EAC || CSA || NOM || UL || CE |
| Package Quantity | 1 |
