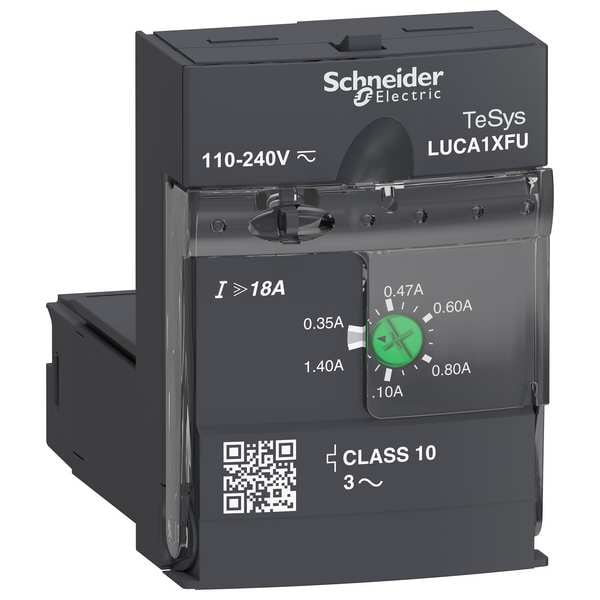

Módulo de sobrecarga, 110 a 240V CA; 110 a 220V CC, 3 polos.
| Item | Overload Module |
|---|---|
| Overload Relay Amp Setting | 0.35 to 1.4 A |
| Coil Volts | 110 to 240V AC; 110 to 220V DC |
| Number of Poles | 3 |
| Features | Protection against phase failure and phase imbalance; Protection against overload and short-circuit; Manual reset; Earth fault protection; Free of Halogen, Mercury & Pvc; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration |
| Height | 66 mm |
| Depth | 60 mm |
| Standards | CSA C22.2 No 60947-4-1, EN 60947-6-2, IEC 60947-6-2, REACH, RoHS, UL Listed 60947-4-1 |
| Width | 45 mm |
| Hz | 40 to 60 Hz |
| Body Depth - Relay | 2.36 in |
| Reset Type - Relay | Manual |
| Sensing Method | Thermal |
| Body Width - Relay | 1.77 in |
| Overload Relay Current Range | 0.35 to 1.4 A |
| Item - Relay | IEC Style Overload Relay |
| Kit Required for Retrofit Mtg. | No |
| Overall Height - Relay | 2.6 in |
| Frame / Series / Class / Code | Class 10 |
| Use With - Contactors and Starters | Mfr. Series LUA1C Contactors |
| Trip Class - Overload | 10 |
| Separate Mounting | No |
| Body Height - Relay | 2.6 in |
| Weight | 0.135 kg |
| Operating Voltage | 690V AC |
| Maximum Voltage Rating | 690 V AC |
| Phase | Three |
| Compatible with Series | TeSys Ultra |
| Minumum Rated Motor Current Adjustment | 0.35 A |
| Maximum Operating Temperature | 158 deg F |
| Minimum Operating Temperature | -13 deg F |
| Coil Voltage | 110-240V AC/DC |
| Compatible with Manufacturer Model Number | LUB12, LUB32, LUB38 |
| Maximum Rated Motor Current Adjustment | 1.4 A |
| Trip Class | 10 |
| Reset Type | Manual |
| Compatible Manufacturer Part Number | LUB12, LUB32, LUB38 |
| Compatible Manufacturer Model Number | LUB12, LUB32, LUB38 |
| For Use with Mfr. Model Number | LUB12, LUB32, LUB38 |
| Control Circuit Voltage Limits | 88 to 264 V AC 110 to 240 V in operation; 88 to 242 V DC 110 to 220 V in operation; 55 V AC 110 to 240 V drop-out; 55 V DC 110 to 220 V drop-out |
| Utilisation Category | AC-41, AC-43, AC-44 |
| Resistance To Electrostatic Discharge | 8 kV 3 in open air IEC 61000-4-2; 8 kV 4 on contact IEC 61000-4-2 |
| Heat Dissipation | 2 W control circuit with LUB12; 3 W control circuit with LUB32; 3 W control circuit with LUB38 |
| Tripping Threshold | 14.2 x Ir +/- 20% |
| Phase Failure Sensitivity | Yes |
| Operating Altitude | 6561.68 ft (2000 m) |
| Thermal Overload Class | Class 10 40 to 60 Hz -13 to 158°F (-25 to 70°C) IEC 60947-6-2; Class 10 40 to 60 Hz -13 to 158°F (-25 to 70°C) UL 508 |
| Resistance To Fast Transients | 2 kV 3 serial link IEC 61000-4-4; 4 kV 4 all circuits except for serial link IEC 61000-4-4 |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947-6-2 |
| Compatibility Code | LUCA |
| Resistance To Radiated Fields | 9.14 V/m (10 V/m) 3 IEC 61000-4-3 |
| Immunity To Voltage Dips | 70% / 500 ms IEC 61000-4-11 |
| Fire Resistance | 1760°F (960°C) parts supporting live components IEC 60695-2-12; 1202°F (650°C) IEC 60695-2-12 |
| Immunity To Microbreaks | 3 msec |
| Non-Dissipating Shock Wave | 1 kV serial mode IEC 60947-6-2; 2 kV common mode IEC 60947-6-2 |
| Rated Operational Voltage | 690 V AC |
| Product Certifications | CCC, CSA, EAC, UL, ASEFA, ATEX, CE, Marine |
| IP Degree Of Protection | IP20 front panel and wired terminals IEC 60947-1; IP20 other faces IEC 60947-1; IP40 front panel outside connection zone IEC 60947-1 |
| Main Function Available | Protection against phase failure and phase imbalance; Protection against overload and short-circuit; Manual reset; Earth fault protection |
| Protective Treatment | TH IEC 60068 |
| Control Circuit Voltage | 110 to 240 V AC; 110 to 220 V DC |
| Operating Time | 35 ms opening with LUB12 control circuit; 35 ms opening with LUB32 control circuit; 35 ms opening with LUB38 control circuit; 50 ms closing with LUB12 control circuit; 50 ms closing with LUB32 control circuit; 50 ms closing with LUB38 control circuit |
| Rated Insulation Voltage | 690 V IEC 60947-6-2; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1 |
| Fixing Mode | Plug-in front face |
| Immunity To Radioelectric Fields | 10 V IEC 61000-4-6 |
| Shock Resistance | 10 gn power poles open IEC 60068-2-27; 15 gn power poles closed IEC 60068-2-27 |
| Typical Current Consumption | 280 mA 110 to 240 V AC I maximum while closing with LUB12; 280 mA 110 to 240 V AC I maximum while closing with LUB32; 280 mA 110 to 240 V AC I maximum while closing with LUB38; 280 mA 110 to 220 V DC I maximum while closing with LUB12; 280 mA 110 to 220 V DC I maximum while closing with LUB32; 280 mA 110 to 220 V DC I maximum while closing with LUB38; 35 mA 110 to 240 V AC I rms sealed with LUB12; 25 mA 110 to 240 V AC I rms sealed with LUB32; 25 mA 110 to 240 V AC I rms sealed with LUB38; 35 mA 110 to 220 V DC I rms sealed with LUB12; 25 mA 110 to 220 V DC I rms sealed with LUB32; 25 mA 110 to 220 V DC I rms sealed with LUB38 |
| Device Application | Motor control; Motor protection |
| Vibration Resistance | 2 gn 5 to 300 Hz power poles open IEC 60068-2-6; 4 gn 5 to 300 Hz power poles closed IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -13 to 158°F (-25 to 70°C) |
| Product Compatibility | Power base LUB12; Power base LUB32; Power base LUB38; Power base LUB120; Power base LUB320; Power base LUB380; Reversing contactor breaker LU2B12FU; Reversing contactor breaker LU2B32FU; Reversing contactor breaker LU2B38FU |
| Motor Power KW | 0.25 kW 400 to 440 V AC 50/60 Hz |
| Ambient Air Temperature For Storage | -40 to 185°F |
| Product Specific Application | Basic protection requirements for motor starters: overload and short-circuit |
| Safe Separation Of Circuit | 400 V SELV between the control and auxiliary circuits IEC 60947-1; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 |
| Load Type | 3-phase motor self-cooled |
| Product Or Component Type | Standard control unit |
| Compatible with Manufacturer Model No. | LUB12, LUB32, LUB38 |
| Package Quantity | 1 |
