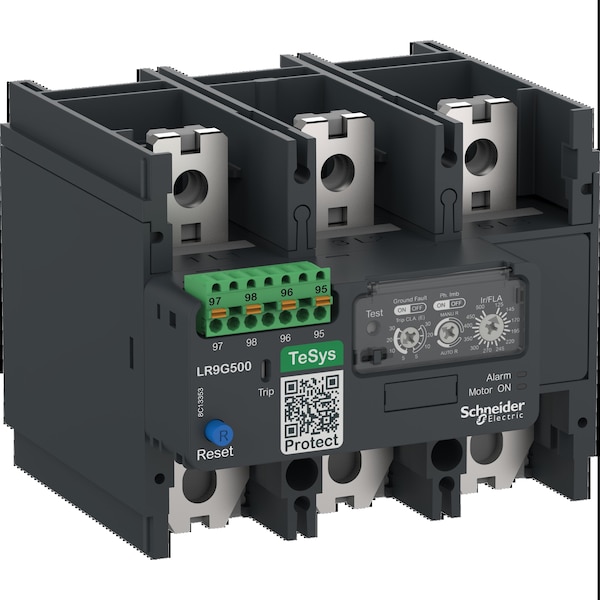

Relé de Sobrecarga, 500V CA, 140°F
| Item | Overload Relay |
|---|---|
| NEMA Size | Not Applicable |
| Standards | CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1 |
| Trip Class | 5E/30E |
| Overall Height | 4.49 in |
| Compatible with Series | TeSys Giga |
| Body Width | 5.51 in |
| Phase | Single |
| Overload Protection Type | Electronic |
| Maximum Operating Temperature | 140 deg F |
| Body Depth | 5.51 in |
| Relay Style | IEC |
| IP Rating | IP20 |
| Mounting Style | Direct To Contactor |
| Minimum Operating Temperature | -13 deg F |
| Maximum Voltage Rating | 500 V AC |
| Reset Type | Manual, Auto |
| Body Height | 4.49 in |
| Maximum Overload Relay Current Setting | 500 A |
| Auxiliary Contact Form | 1NO/1NC |
| Terminal Connection Type | Box Lugs |
| Minimum Overload Relay Current Setting | 125 A |
| Package Quantity | 1 |
