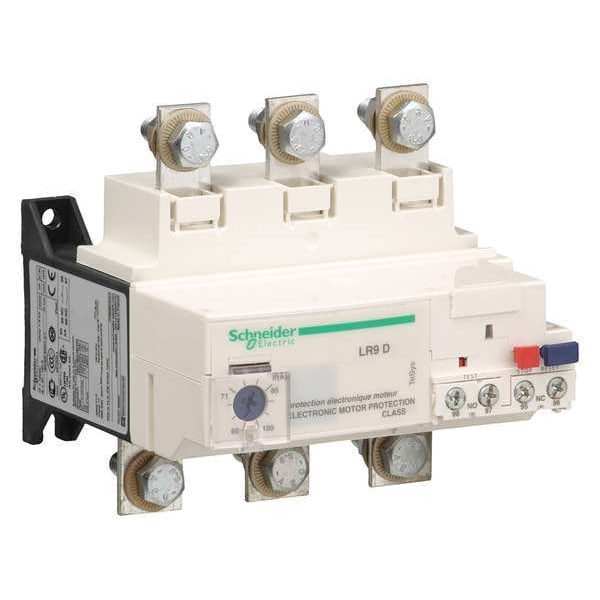

Sobrecarga fiable, de 90 a 150A, Clase 10, 3 polos, 690V
| Item | Overload Relay |
|---|---|
| Item - Relay | IEC Style Overload Relay |
| Use With - Contactors and Starters | Mfr. Series LC1D115 to LC1D150 Contactors |
| Current Range | 90 to 150 A |
| Overload Relay Current Range | 90 to 150 A |
| NEMA Size | Not Applicable |
| Trip Class - Overload | 10 |
| Width | 4.72 in |
| Number of Poles | 3 |
| Height | 3.98 in |
| Reset Type - Relay | Manual |
| Sensing Method | Thermal |
| Depth | 5.19 in |
| Body Depth - Relay | 5.19 in |
| Body Width - Relay | 4.72 in |
| Trip Class | 10 |
| Features | Differential |
| Body Height - Relay | 3.98 in |
| Overall Height - Relay | 3.98 in |
| Standards | CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1 |
| For Use With | LC1D115 thru LC1D150 IEC Contactors, 115 to 150A |
| Starter Type | IEC |
| Control Type | Red push-button stop || Blue push-button reset |
| Relay Application | motor protection |
| Climatic Withstand | IACS E10 |
| [Ith] Conventional Free Air Thermal Current | 5 A (signalling circuit) |
| Thermal Protection Adjustment Range | 90 to 150 A |
| [Us] Rated Supply Voltage | 24 V DC |
| Network Type | AC |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Supply Voltage Limits | 17-32 V |
| Switching Capacity In Ma | 0 to 150 mA |
| [Ue] Rated Operational Voltage | 690 V AC 0 to 400 Hz power circuit IEC 60947-4-1 |
| Mechanical Robustness | vibrations2 Gn, 5 to 300 Hz IEC 60068-2-6 || shocks13 Gn for 11 ms IEC 60068-2-7 |
| Temperature Compensation | -20-60°C |
| Associated Fuse Rating | 4 A gG signalling circuit || 4 A BS signalling circuit |
| Phase Failure Sensitivity | tripping in 4 s +/- 20 % IEC 60947-4-1 |
| Network Frequency | 50-60 Hz |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Ambient Air Temperature For Storage | -60-70°C |
| Ambient Air Temperature For Operation | -20-60°C without derating IEC 60947-4-1 |
| Thermal Overload Class | class 10 IEC 60947-4-1 |
| Dielectric Strength | 1.89 kV 50 Hz IEC 60947-1 |
| Product Or Component Type | electronic thermal overload relay |
| Product Compatibility | NSX circuit breaker || LC1D150 || LC1D115 |
| Connections - Terminals | power circuit bars || control circuit screw clamp terminals 1 0.5-1.5 mm² flexible without cable end || control circuit screw clamp terminals 2 0.5-1.5 mm² flexible without cable end || alarm circuit screw clamp terminals 1 0.5-1.5 mm² flexible without cable end |
| Range | TeSys |
| Signalling Function | alarm |
| Product Certifications | UL || CSA || CCC || UKCA |
| Device Short Name | LR9D |
| Product Name | TeSys LRD || TeSys Deca |
| Operating Altitude | <= 6561.68 ft (2000 m) without derating |
| Tripping Threshold | 1.05 +/- 0.06 In alarm IEC 60947-4-1 || 1.12 +/- 0.06 In de-energisation IEC 60947-4-1 |
| Tightening Torque | alarm circuit 0.45 N.m screw clamp terminals || power circuit 18 N.m bars M8 || control circuit 1.2 N.m screw clamp terminals |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Maximum Voltage Drop | <2.5 V closed state |
| Mounting Support | under contactor || rail |
| [Ui] Rated Insulation Voltage | power circuit 1000 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL |
| Auxiliary Contact Form | 1NO/1NC |
| Body Height | 4.65 in |
| Body Depth | 4.92 in |
| Overall Height | 4.65 in |
| Terminal Connection Type | Screw Clamp Terminals |
| Reset Type | Manual, Auto |
| Relay Style | IEC |
| Body Width | 4.53 in |
| Mounting Style | Direct To Contactor |
| Minimum Overload Relay Current Setting | 90 A |
| Overload Protection Type | Thermal |
| IP Rating | IP20 |
| Compatible with Series | TeSys Deca |
| Includes Mounting Hardware | Not Applicable |
| Minimum Operating Temperature | -4 deg F |
| Maximum Operating Temperature | 140 deg F |
| Maximum Voltage Rating | 690 V AC |
| Maximum Overload Relay Current Setting | 150 A |
| Rated Insulation Voltage | Power circuit 1000 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL |
| Package Quantity | 1 |
