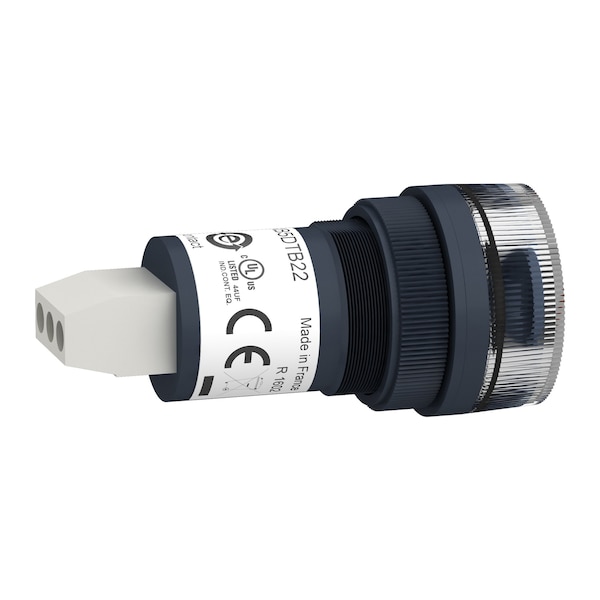

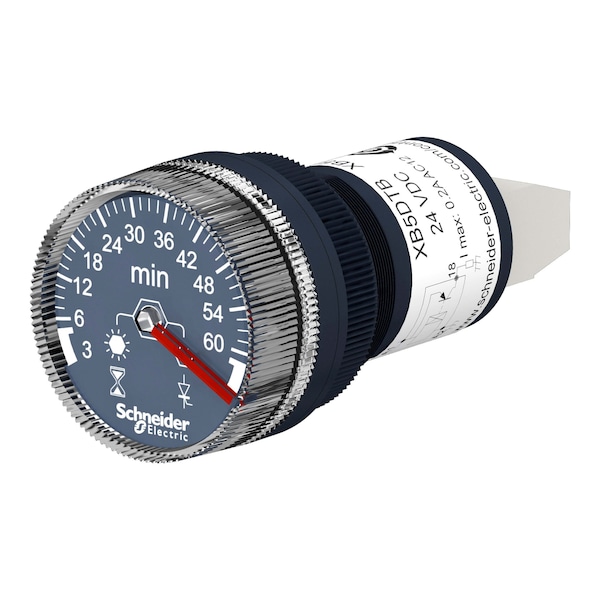

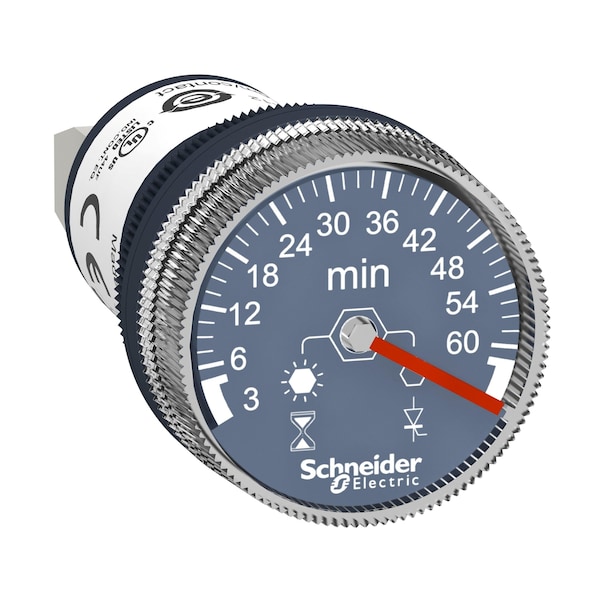

Temporizador monofuncional montado en panel, Harmony XB5, de plástico, 22mm, retardo de tiempo de 3 a 60 minutos, 100 a 240V CA y CD.
| Item | PANEL MOUNTED TIMER MONOFUNCTION 3 MIN T |
|---|---|
| Height | 62 mm |
| Standards | UL 508, IEC 61812-1 |
| Setting Accuracy of Time Delay | +/- 10 % of full scale 25°C IEC 61812-1 |
| Product or Component Type | timer |
| Disturbance Radiated/Conducted | class B EN 50022 |
| Time Delay Type | A |
| Pollution Degree | 3 IEC 60664-1 |
| [Us] Rated Supply Voltage | 110...230 V AC/DC |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1, 4 kV IEC 60664-1 |
| Shock Resistance | +/- 15 gn 11 ms 6 shocks on each axis)IEC 60068-2-27 |
| Range of Product | Harmony XB5 |
| Electromagnetic Compatibility | electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2, electromagnetic emission class B conforming to IEC 55011 |
| Temporary Permissible Current | 10 A 0.01 s |
| Reset Time | 30 ms after time delay on de-energisation, 60 ms during time delay on de-energisation |
| Maximum Voltage Drop | 5 V |
| Ambient Air Temperature For Operation | -20-60°C |
| Minimum Switching Current | 10 mA |
| Protection Type | overvoltage protection |
| Bezel Material | plastic |
| Time Delay Range | 3...60 min |
| Device Presentation | monolithic product |
| Thickness | 1-6 mm |
| Voltage Drift | +/- 0.2 %/V |
| Fixing Collar Material | plastic |
| Supply Voltage Limits | 93.5-253 V AC/DC |
| Mounting Diameter | 22 mm |
| Dielectric Strength | 1500 V IEC 61812-1 |
| Surge Withstand | 2 kV, level 3 IEC 61000-4-5 |
| Temperature Drift | +/- 0.05 %/°C |
| Tightening Torque | 0.5 N.m |
| Ip Degree of Protection | IP65 front: conforming to IEC 60529, IP20 back: conforming to IEC 60529 |
| Connections - Terminals | screw terminals 1 x 4 mm² IEC 60947-1, screw terminals 1 x 2.5 mm² IEC 60947-1 |
| Output Short-Circuit Protection | no |
| Repeat Accuracy | +/- 0.5 % |
| Diameter | 29 mm |
| Immunity To Radioelectric Fields | 10 V level 3 IEC 61000-4-6 |
| Power Consumption In Va | 1.5 VA |
| Overvoltage Category | class 3 IEC 60536, class 3 IEC 60664-1 |
| Output Type | thyristor |
| Vibration Resistance | 0.15 mm 10-60 Hz)IEC 60068-2-6, 2 gn 60-150 Hz)IEC 60068-2-6 |
| [Ui] Rated Insulation Voltage | 250 V IEC 60947-1, 250 V IEC 60664-1 |
| Local Signalling | LED green, steady timing in progress, LED, off no timing in progress and output relay energised |
| Resistance To Electromagnetic Fields | 10 V/m 80 MHz...1 GHz level 3 IEC 61000-4-3, 3 V/m 1.4...2 GHz level 2 IEC 61000-4-3, 1 V/m 2...2.7 GHz level 1 IEC 61000-4-3 |
| Resistance To Fast Transients | 2 kV level 3 IEC 61000-4-4 |
| Shape of Signaling Unit Head | round |
| Power Consumption In W | 1 W |
| Ambient Air Temperature For Storage | -20-80°C |
| Maximum Residual Current | 5 mA |
| Package Quantity | 1 |
