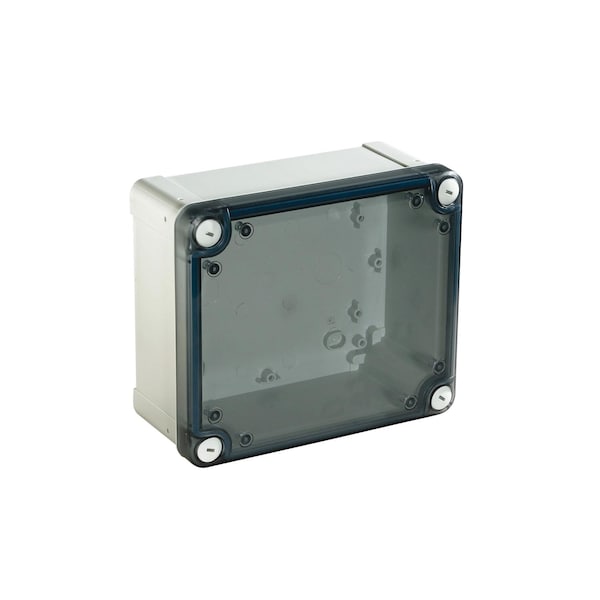

Caja de PC IP66 IK08 RAL7035 Int.H150W105D80 Ext.H164W121D87 Cubierta transparente H20
| Item | PC box IP66 IK08 RAL7035 Int.H150W105D80 |
|---|---|
| Material | Polycarbonate |
| Standards | UL 508 A || IEC 62208 |
| Color | Gray RAL 7035 || Transparent |
| Width | 121 mm |
| Height | 164 mm |
| Depth | 87 mm |
| Device Composition | 1 body || 1 cover || 4 cover screw |
| Ik Degree Of Protection | IK08 IEC 62262 |
| Ip Degree Of Protection | IP66 conforming to NEMA 4.4X |
| Lock Type | captive screw flat outside sealed area |
| Product Name | Thalassa TBP |
| Mounting Location | outdoor (with canopy or shelter and anticondensation valve) |
| Type Of Front Cover | low transparent cover |
| Product Certifications | TUV || UL |
| Device Application | multi-purpose |
| Internal Width | 105 mm |
| Removable Parts | cover by captive screws |
| Cover Fixing | plastic screws |
| Internal Height | 150 mm |
| Fire Resistance | 960°C |
| Ambient Air Temperature For Operation | -25-80°C |
| Product Or Component Type | box |
| Range | Thalassa |
| Body Type | one piece moulded |
| Ambient Air Temperature For Storage | -15-60°C |
| Electrical Insulation Class | class II |
| Internal Depth | 80 mm |
| Enclosure Mounting | wall mounted |
| Operating Temperature | -13 to 176°F (-25 to 80°C) |
| Package Quantity | 1 |
