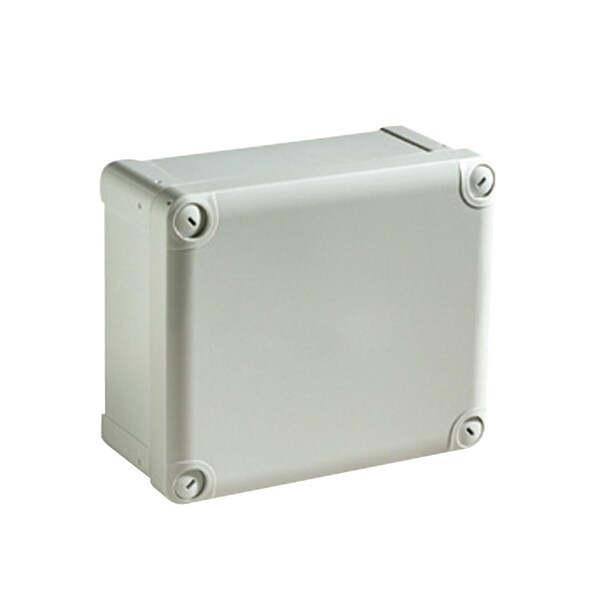

Caja de PC IP66 IK08 RAL7035 Int.H175W105D80 Ext.H192W121D87 cubierta de PC opaca H20.
| Item | PC box IP66 IK08 RAL7035 Int.H175W105D80 |
|---|---|
| Material | Polycarbonate |
| Width | 121 mm |
| Depth | 87 mm |
| Standards | IEC 62208 || UL 508 A |
| Color | Gray RAL 7035 |
| Height | 192 mm |
| Ip Degree Of Protection | IP66 conforming to NEMA 4.4X |
| Product Or Component Type | box |
| Cover Fixing | plastic screws |
| Mounting Location | outdoor (with canopy or shelter and anticondensation valve) |
| Range | Thalassa |
| Product Name | Thalassa TBP |
| Fire Resistance | 960°C |
| Ambient Air Temperature For Operation | -25-80°C |
| Internal Depth | 80 mm |
| Ik Degree Of Protection | IK08 IEC 62262 |
| Product Certifications | TUV || UL |
| Type Of Front Cover | low plain cover |
| Lock Type | captive screw flat outside sealed area |
| Ambient Air Temperature For Storage | -15-60°C |
| Body Type | one piece moulded |
| Device Composition | 1 body || 1 cover || 4 cover screw |
| Device Application | multi-purpose |
| Internal Height | 175 mm |
| Electrical Insulation Class | class II |
| Removable Parts | cover by captive screws |
| Internal Width | 105 mm |
| Enclosure Mounting | wall mounted |
| Package Quantity | 1 |
