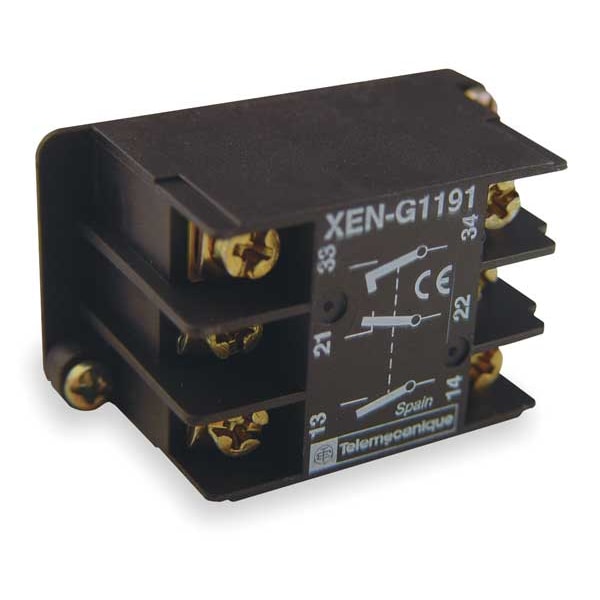

Colgante de contacto, F/XAC, XACA, XACA9
| Item | Pendant Contact |
|---|---|
| Color | Black |
| For Use With | Mfr. No. XAC, XACA, XACA9 Series |
| Standards | EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 |
| Includes | Spring Return, 1 Speed, 2NO/1NC Contacts |
| Features | 2NO/1NC Contacts, Front Mounting |
| Component Name | XENG |
| Product Compatibility | XACA9...head || XACA |
| Product Or Component Type | contact block |
| Contact Block Application | single speed |
| Connections - Terminals | screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end || screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end |
| Ambient Air Temperature For Operation | -25-70°C |
| Mounting Of Block | front mounting |
| Terminals Description Iso N°1 | (21-22)NC || (13-14)NO || (33-34)NO |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Electrical Circuit Type | control circuit |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Operating Force | 18 N |
| Contacts Type And Composition | 1 NC + 2 NO |
| Contact Block Type | single |
| Short-Circuit Protection | 10 A (fuse protection cartridge gG) |
| Contact Operation | slow-break || simultaneous |
| Type Of Operator | spring return |
| Contact Code Designation | A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A |
| Maximum Resistance Across Terminals | 25 MOhm |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Mechanical Durability | 1,000,000 cycle |
| Overvoltage Category | class II IEC 61140 |
| [Ithe] Conventional Enclosed Thermal Current | 10A |
| Ambient Air Temperature For Storage | -40-70°C |
| Rated Operational Power In W | 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C |
| Terminals Description Iso N°1 | NC || NO || NO |
| Compatible with Series | XAC |
| Compatible Product Type | Control Stations |
| Legend | Not Applicable |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Product Type | Contact Block |
| Package Quantity | 1 |
