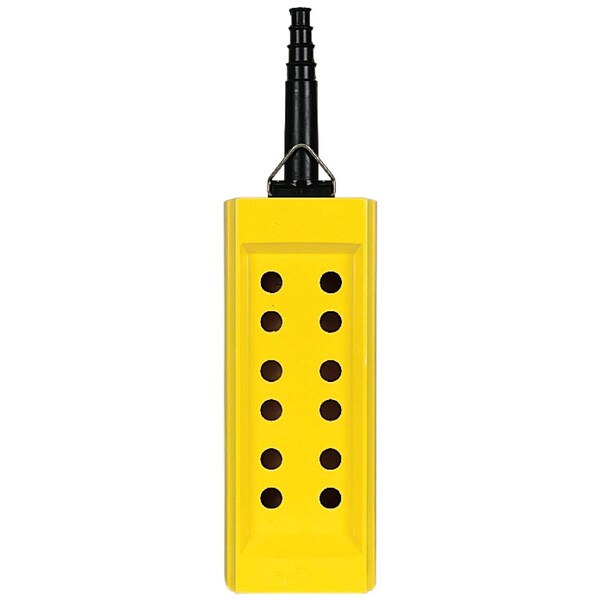

Estación de control colgante, Harmony XAC de Schneider Electric, vacía, fabricada en plástico amarillo, con 12 recortes y 2 columnas para cable de 10 a 22mm.
| Item | Empty pendant control station XAC-B - 12 |
|---|---|
| Cable Entry | rubber sleeve with stepped entry 10-22 mm |
| Standards | CSA C22.2 No 14, EN/IEC 60947-5-1 |
| Enclosure Type | empty enclosure |
| Vertical Operator Cut-Out Centre | 40 mm |
| Ambient Air Temperature For Storage | -40-70°C |
| Number of Cut-Out | 12 cut-outs |
| Ik Degree of Protection | IK08 EN 50102 |
| Electrical Circuit Type | control circuit, circuit power circuit |
| Range of Product | Harmony XAC |
| Device Short Name | XACB |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Enclosure Material | glass reinforced polyester |
| Ip Degree of Protection | IP65 conforming to IEC 60529 |
| Product or Component Type | pendant control station |
| Ambient Air Temperature For Operation | -25-70°C |
| Control Station Colour | yellow |
| Overvoltage Category | class II IEC 61140 |
| Protective Treatment | TH |
| Mechanical Durability | 1,000,000 cycle |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Control Station Type | double insulated |
| Guard Rail | Without |
| Product Certifications | CSA type 4 |
| Package Quantity | 1 |
